Laboratory Electrode Punching Machine Lithium Ion Batteries

Easy Operation Desktop Lithium Ion Batteries Pouch Cell Punching Machine Laboratory Electrode Punching Equipment

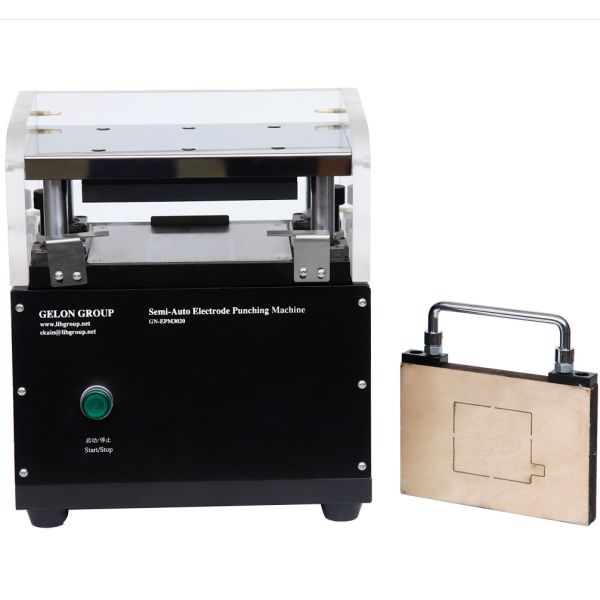

Semi-automatic electrode punching machine is used for stacking cathode &anode electrode of li ion battery.It can die sheet electrode by pneumatic,and can be put in the glove box,also offer customized any cutting die to make molding and die cutting with different size of electrodes .

Sheet electrode feeding,cutting die make punching ,allow operating inside Glove box；

Cylinder driving, no power supply,Adjustable cutting force and speed；High strength frame ,up and down precision pressing plate,high performance cut, make cutting precision Cutting product with little burr ,no powder, no indentation and bad appearance;(Cathode & Anode) cutting dies are included,Customized cutting die is available upon request;Drawer design of upper and lower die ensures safe operation

• Gas source:0.5~1.0MPa Argon /nitrogen,or 0.7MPa compressed air(No in glove box)
• Punching size:Max. L80*W60mm
• Standard die:Cathode56*43mm Anode58*45mm,customized as request
• Life of cutting die:About30 thousand times(Normal use)
• Punching pressure:Max. 1T,For electrode 500Kg(0.5MPa)
• Punching precision:±0.1mm
• Punching thickness:Max. 0.5mm(aluminum-plastic film)
• Punching stroke:12mm
• Installment size:L370mm*W245mm*H245mm
• Punching burr:Vertical burr≤12μm,level burr≤20μm
• Weight:32KG
• Outside size(See below installation pic )
• It can be customization
