| Categories | PCB Router Machine |
|---|---|
| Brand Name: | Chuangwei |
| Model Number: | CWD-3A |
| Certification: | CE ISO9001 |
| Place of Origin: | Dongguang china |
| MOQ: | 1 set |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 300 sets per month |
| Delivery Time: | 1-3 days after deposit confirm |
| Packaging Details: | each set can be packed in plywood case |
| Price: | Negotiable |
| Resolution: | ±0.01mm |
| Working Area: | 320*320mm(Could Be Customize |
| Spindle Motor Speed: | 50000r/M |
| warranty: | 1 year |
| Working Precision: | 0.04mm |
| Load and unload way: | manual |
| Company Info. |
| Shenzhen SMTfly Electronic Equipment Manufactory Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

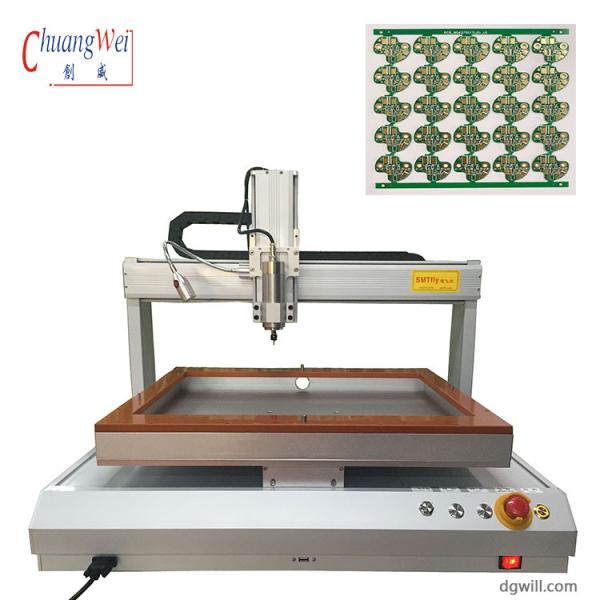

LCD Digital Display Desktop Pcb Router Machine With Robust Frame CW-F01S
Specification:
| Motor drive system | Servo / stepper motor |
| Spindle speed | 50000r/s |
| Cutting performance | 500mm/s |
| Drive system repeatability | ±0.02mm |
| Cutting speed | Max 100mm/S(depends on PCB material and cutting quality) |
| Resolution | ±0.01mm |
| Configuration | X,Y,Z 3 axis |
| Repeatability | <0.1mm |
| PCB positioning | fixture |
| Load and unload way | Manually |
| PCB thickness | 0.4mm-4mm |
| Working area | 400*400mm(could be customized made) |
| Spindle motor power | 0.5KW |
| Spindle motor speed | 50000r/m |
| Spindle motor cooling | Air-cooled |
| Machine dimension | 650*550*615mm |
| Weight | 73KG |
Feature:
1. Desktop single bench cutting machine, Speeds of up to 100mm/s,
positioning speed 500mm/s. pcb router machine
2. Cut continuously without interruption during loading and
unloading. pcb router machine
3. High quality shaft system allows the system to quickly ramp,
reduce the period of time, Improve productivity, maintaining high
precision.pcb router machine
4. Use high-quality hardware to ensure high rigidity and high
performance All screws are protected from dust and dirt from
entering to improve the life and performance of the shaft
5. Use high-quality hardware to ensure high rigidity and high
performance
our advantage: cnc router machine cnc router machine cnc router machine cnc router machine
1. We offer 24 hours technical support by call, email.
2. Our technician can give you remote guide online(Skype or MSN) if you have any question
3. We can record videos of operating the laser machine.
4. Free training course in our factory.
5. Machine will be adjusted before it is delivered , operation disk/CD was included
Always best service for you:
1.Engineers available to service machinery oversea. | Engineers are available to be sent to freign countries to do
machinery training and offer technical support. |
2.Mature technique & forerunner to process makes high quality
machinery. | As largest manufactory in South China, we have 12 years experience
on PCB separator machines and soldering machines. pcb router
machine Our R&D team continuously upgrade the existing machines to meet
the market development trend. |
3.Effective customer service. pcb router machine | All of us together are stronger and wiser than any one of us
individually. To succeed, we must assume responsibility, cooperate
with fellow associates and withdepartments, effectively comminicate
with one another, foster enthusiam and participate in
decision-making. To be seay reachable by customers and provide
prompt replies to solve their problems and create value for
customers. |
4.One year warranty for the machines except accessories. b router
machine | Robust frame construction and Japanese steel blades obtained good
appraise and recognized by and oversea clients. We offer parts for
replacement under warranty free of charge, clients only need to
bear freight charge. |
Our mission: | Ongoing PCB industry PCB separator technological innovation, to
create greater value, allowing customers to success |
Our Vision: | PCB industry to become the world's leading solution providers PCB
separator. pcb router machine |
Our sales network:
More information welcome to contact us:
Email: sales@dgwill.com
Wechat/Skype:+86 18166146357
24 Hours Service,Welcome to Inquiry!!
|
