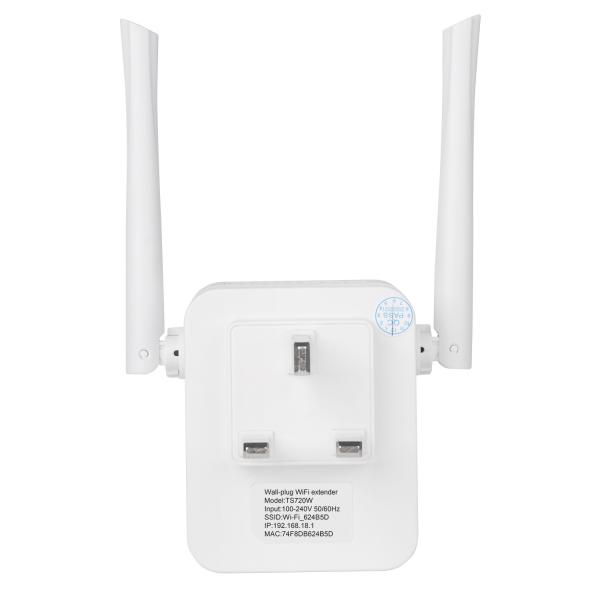

1200Mbps Wall Socket WIFI Extender

Wall-plug wifi extender 1200Mbps Strong Signal dual external antenna wide application Wireless Wifi Repeater Booster

Model Number: TS1200

Wifi extender 1200Mbps TS1200_External antenna, Multipal plug

Product Characteristic

In accordance with 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11ac

Support CSMA / Ca, CSMA / CD, TCP / IP, DHCP, ICMP protocols

Support wireless to wireless, wireless to wired

Support WPS one key relay

Support web management, Chinese configuration interface

Support 64 / 128 bit WEP, wpa-psk, wpa2-psk and other latest wireless security standards

Provide web management page reset and restore factory settings

Support user manual online system upgrade function

Product Specification

Chipset		MT7628A+MT7612E
Main frequency and processing speed		580MHZ
Memory(Byte)		64M-Byte DDR2
FLASH(Byte)		8M- Byte (SPI flash)
Standards and protocols supported		IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,CSMA/CA,CSMA/CD,TCP/IP,DHCP,ICMP
Port	WAN/LAN	1*LAN(10/100M)
Port	Button	1Reset 1WPS
wireless	Frequency range / deviation	2.412GHz~2.4835GHz / 5.180GHz~5.825GHz
parameter	transmission speed	802.11b : 1/2/5.5/11Mbps(Max) 802.11g : 6/9/12/18/24/36/48/54Mbps(Max) 802.11n (HT20): 150Mbps(Max) 802.11n (HT40): 300Mbps(Max) 802.11a: 6/9/12/18/24/36/48/54 Mbps(Max) 802.11AC (VHT80): 900Mbps(Max)
	Transmitting power EVM	2.4G: 802.11b:18dBm+/-1 dBm 802.11g:17dBm +/-1dBm EVM< -25 dBm 802.11n:17Bm +/-1dBm EVM< -28 dBm 5.8G: 802.11a:16dBm+/-1 dBm 802.11n:15dBm +/-1dBm EVM< -30 dBm 802.11ac:14Bm +/-1dBm EVM< -32 dBm
	Spread spectrum technology	DSSS(Direct sequence spread)
	Data modulation	DBPSK,DQPSK,CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM/256-QAM)
	Sensitivity @ PER (error rate)	11b 1Mbps: -95dBm@10%PER 11g 54Mbps: -75dBm@%10 PER 11n HT20 150Mbps: -72dBm@%10PER 11n HT40 300Mbps: -70dBm@%10 PER 11ac VHT80 866Mbps: -56dBm@%10 PER
	power	≤5W
power supply		AC220V
LED		PWR,LAN,Signal,WPS
Indication	LAN	Support
Boundary dimension (L×W×H)(mm)		95x120x60mm

Product Tags:

1200Mbps wall socket wifi extender

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen Createk Technology Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	4G LTE Router
Brand Name:	Createk
Model Number:	TS1200
Certification:	CE, RoHS, FCC, KC
Place of Origin:	China
MOQ:	1000
Payment Terms:	T/T, Western Union
Supply Ability:	100k pcs/ month
Delivery Time:	5-6 weeks
Packaging Details:	Carton
Standard:	802.11b/n/g/ac
Chipset:	MT7628A
Speed:	1200Mbps
Antennas:	2*3dBi External Omnidirectional Antennas
Plug:	Multi Plug
Port:	RJ45
Dimension:	95x120x60mm
