4kN 5 Liter Blow Moulding Machine

Categories 5 Liter Blow Moulding Machine
Brand Name: Sanqing
Model Number: SQ-11
Certification: CE ISO
Place of Origin: Hebei, China
MOQ: 1 set
Payment Terms: L/C, T/T
Supply Ability: 50 sets/month
Delivery Time: 45 days
Packaging Details: Angle frame with outside wooden case
Product Name: 5L Single-layer Hydraulic Blow Molding Machine for Food, Biscuit Plastic Bottle
Clamping Force: 4kN
Power: 20kW
Suitable Bottle: 1 to 5L
Mold Platen Size(Width): 300mm
Mold Platen Size(Height): 500mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

4kN 5 Liter Blow Moulding Machine

Specification

SPECIFICATIONS FOR BLOW MOLDING MACHINE
System
Item
Unit
Basic Parameters
Basic
Plastic fit for
PE/PP
Max hollow product volume
L
5
No. of Die head
SET
1
Size(LxWxH)
M
3.5*2.1*2.2
Weight
TON
5
No. of Working Station
Set
2
Molds
Clamping Force
KN
120
Template Distance
MM
220--620
Template Stroke
400
Max template size(WxH)
MM
480*500
Mould thickness
MM
225—300
Extrusion System
screw diameter
MM
75
Clading layer
MM
45
Clading layer
MM
45
Screw L/D ratio
L/D
25:1
(HDPE)Plasticizing capacity
KG/H
70
Screw heating zone
ZONE
4
Screw heating power
KW
16
Extrusion motor's power
KW
22
Die head
Die head heating zone
zone
3
Die head heating power
KW
9
Sprue-die dia.(max)
mm
180
Oil-pump motor power
KW
11
air pressure
Mpa
0.6--0.8
Average power
KW
35
Compressed air dosage
m³/min
1.5--2.5
Cooling water dosage
L/min
3--5

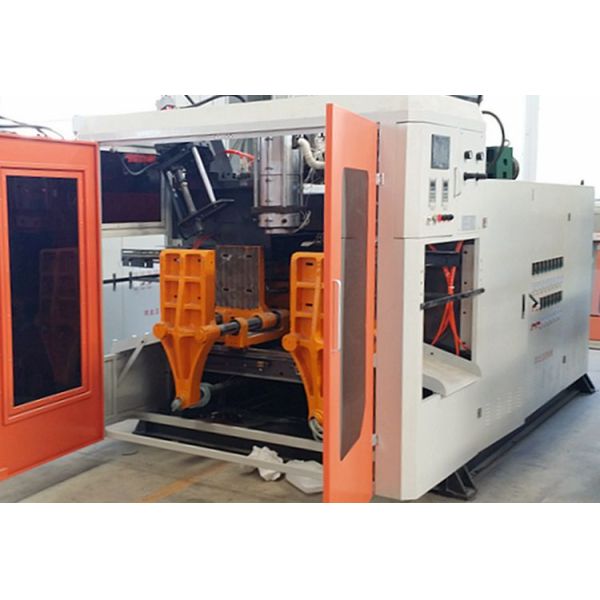

This machine is suitable to produce bottles max. 5 Liters. Double stations single die head. It is equipped with auto deflashing
devices. the extra material could be cutted automatically. Cusotmer could choose to add with parison controller, which could
control the thickness very well. Each hour, it could produce 200-300 pcs bottles.

The machine is controlled by PLC system, operator could setup parameters by the LCD monitor.

Besides, customer could choose to add view strip for the bottles.
