PET Plastic Bottle Drinking Water Filling Machine Production Line

Automatic PET Plastic Bottle Drinking Water Filling Machine / Production Line For Sale

MACHINE SPECIFICATION

Model	CGF8-8-3	CGF14-12-5	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12	CGF50-50-15
Capacity(B/h)	2000	5000	8000	12000	15000	18000	24000
Floor Area	300m2	400m2	600m2	1000m2	2000m2	2500m2	3500m2
Total Power	100KVA	100KVA	200KVA	300KVA	450KVA	500KVA	600KVA
Workers	8	8	6	6	6	6	6

Detailed Images

Washing Part--

- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

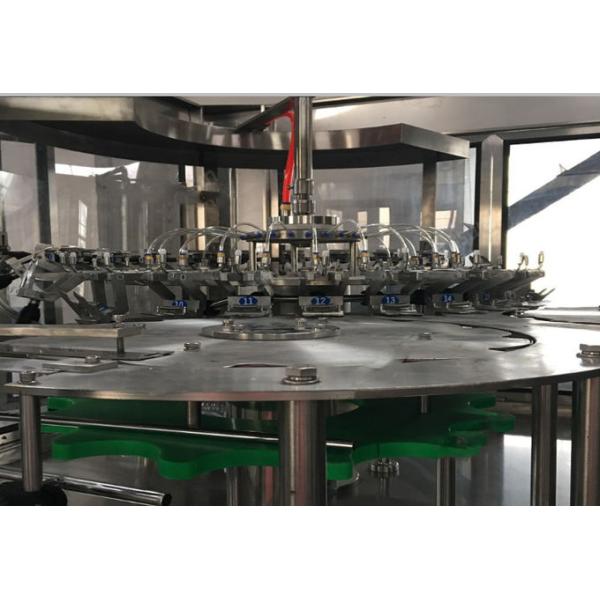

Filling Part--

- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

Capping Part--

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%

Air Conveyor System

Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are blocked on the neck in the conveyor and transported into filling machine by blowing power.

Belt Conveyor System

according to the requirements of different users, different production capacity, tank type, a combination of different ways of conveying module, motor control mode, with great flexibility.

Automatic PVC shrink labeling machine

The machine can be used for various bottle types, such as: round bottle, square bottle, flat bottle, curve bottle, cup, and so on.

Blow Dryer

This machine installed after the filling machine, In order to dry the bottles which outside with some water drop, This machine is used to removing the water outside the bottle surface, the blowing capacity can be adjusted through the button.

Automatic PE film shrink wrapping machine

(1)350/500/550/600ML

large package: 4*6, 4*5

Small package: 3*4, 3*5 (2)1L/1.5L/2L/2.5L

large package:3*3,3*4 Small Package:2*2,2*3

PET bottle making machine

PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Zhangjiagang Aquatrin Machinery Co.,LTD is a professional manufacturer engaged in the Suppply Beverage Bottle Filling machine,5gallon filling machine ,Labeling machine,Package machine ,Water treatment machine. complete bottling production Line.,

The company was established in 2015years, has many enterprises at home and abroad to establish a long- term friendly business relationship. We are located in Zhangjiagang city jiangsu Province, China. Near shanghai city, With convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
