| Brand Name: | Hizar |
| Model Number: | HTCM |
| Certification: | CE/ISO |
| Place of Origin: | CN |
| MOQ: | 1pcs |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000pcs/month |
| Delivery Time: | 30days |
| Packaging Details: | Packed with wooden pallets |
| Product Name: | 800-1200mm Blade Diameter 2500mm & 2700mm Processing Length Table Tyoe Manual Block Cutter |
| Application: | For Cutting Stone |
| Main Motor Power: | 15kw 18.5kw |
| Gross Power: | 16.5kw & 19.5kw |
| Max cutting width: | 1000mm |
| Blade diameter: | 800-1000mm 800-1200mm |
| Processing Length: | 2500mm & 2700mm |
| Stone Processing Thickness: | 350mm & 450mm |
| Water Consumption: | 5m³/h |
| Gross weight: | 2000kg 3250kg |
| Overall Dimensions: | 4200*2000*2300mm & 5090*2000*2300mm |
800-1200mm Blade Diameter 2500mm & 2700mm Processing Length Table Tyoe Manual Block Cutter
Description
Good for processing semi-finished stone and thick slabs,cube stones.
45° rotation of cutting head allow it to do beveling.
Automatic up & down movement for cutting head,manual transverse movement.
Specification
| Product Name | 800-1200mm Blade Diameter 2500mm & 2700mm Processing Length Table Tyoe Manual Block Cutter |
| Application | For cutting stone |
| Product Code | HTCM-1000A HTCM-1000c |
| Blade diameter | 800-1000mm & 800-1200mm |
| Main Motor power | 15kw & 18.5kw |
| Gross power | 16.5kw & 19.5kw |
| Water Consumption | 5m³/h |
| Weight | 2000kg & 3250kg |

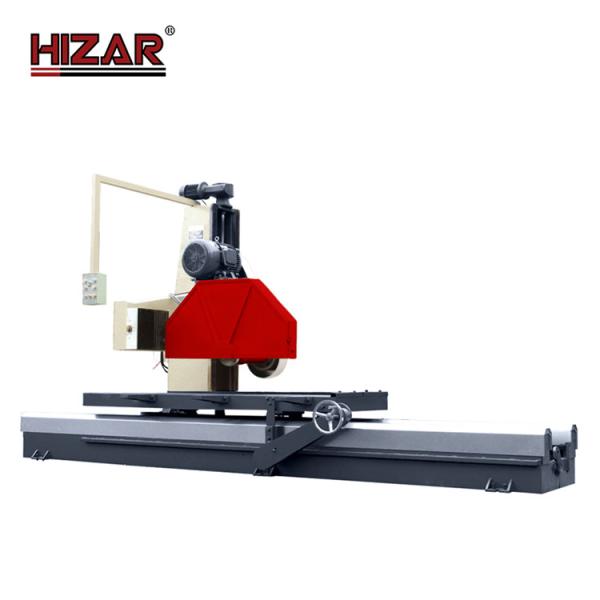

Product Pictures



|
