| Categories | Submersible Level Transmitter |
|---|---|
| Model Number: | ML2000Y |
| Place of Origin: | China |
| MOQ: | 1pc |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs per month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | In Carton Packing |
| Product Name: | Submersible Level Transmitter |
| Accuracy: | ±0.5% or ±0.2% |
| Measuring Range: | 0~200mH2O |
| Overload Limit: | 150%~300% |
| Power Supply: | 24VDC or 12VDC |
| Working Temperature: | 0~85℃ |

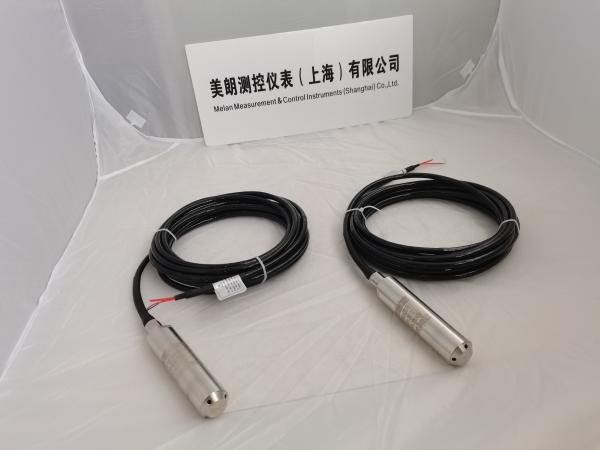

Hydrostatic Submersible Level Transmitter With 0-10 PSIG Sensering Range
1. Introduction
ML2000Y series integrated submersible liquid level transmitter adopts imported silicon pressure transducer as sensitive element, utilizing reasonable industry structure to finish stainless steel sealing package. The amplifying circuit can ensure measurement accuracy through laser compensation . The electrical connection cable applies is anti corrosive gas shielded cable which makes the back pressure chamber is directly connected to the atmosphere. Therefore it is suitable for measurement of all kinds of canned liquids in the industry field in which it converts pressure measured into 4-20mA standard current signal. It can also be assembled with other instruments to realize automatic control. This product is widely used in petroleum,chemical, textile, metallurgy, electricity, water conservancy, environmental protection, brew-age.
2. Technical Parameter
3. Structure & Material
4. Configuration
| Type | Specification Code | Illustration |
| ML2¨¨¨Y | --------------------------------- | Integrated Submersible Liquid Level Transmitter |
| Transducer | 0-------------------------------- | Diffused Silicon Transducer |
| Accuracy | 8-------------------------------- | ±0.5% |
| 5-------------------------------- | ±0.2% | |
| Output | 8-------------------------------- | 4-20mA |
| 1-------------------------------- | 4-20mA, HART, RS485 | |
| Y-------------------------------- | ||
| Measuring Mode | A-------------------------------- | Common Type * |
| G-------------------------------- | Oil Resistance Type(0~200℃) | |
| N-------------------------------- | Corrosion Resistance Type | |
| K-------------------------------- | Lightning Stroke Resistance Type | |
| Measuring Range | 1-------------------------------- | 0-1000mmH2O |
| 2-------------------------------- | 0-5000mmH2O | |
| 3-------------------------------- | 0-10000mmH2O | |
| 4-------------------------------- | 0-20000mmH2O | |
| 5-------------------------------- | 0-30000mmH2O | |
| 6-------------------------------- | 0-60000mmH2O | |
| 7-------------------------------- | 0-100mH2O | |
| 8-------------------------------- | 0-150mH2O | |
| 9-------------------------------- | 0-200mmH2O | |
| Power Supply | -A-------------------------------- | 24VDC |
| -B-------------------------------- | 12VDC | |
| Additional Type | -NF1---------------------------- | Ex-proof Certificate: Exd II CT6 |
| -NS1---------------------------- | Intrinsic Safety Type: Exi II CT4 | |
| -M------------------------------- | Other Requirements (Note 1) | |
| Remarks: | ||
| e.g.:ML2088YA2-A-NF1 0-5000mmH2O | ||
| Note1: Please note in order | ||
| *: Standard | ||
| Order Attention: | ||
| 1. Indicate the ambient temperature and medium temperature if it is corrosive. | ||
| 2. Indicate medium density. | ||
5. Company Profile
Melan Measurement & Control Instruments is located in Shanghai City. It is a high-tech manufacturer specialized in the design, development, manufacturing and sale of measurement and control instruments.
Our products are widely used in various fields, including
electricity, chemical industry, metallurgy, brewing, oil and gas,
textile, water conservancy, environmential protection, etc.
We own independent-courtyard modemized manufacturing workshops and
an open office building. Melan has accumlated production and
management experience in instruments from European and American and
domestic famous companies.
We own first-class talent team, and all the products have reached
advanced level at home and abroad. We provide our customers with
complete and professional test control solutions and high-tech and
high-quality products.
Melan is your reliable friend and partner. We are willing to try
our best as dedication and perfection as motivation.
6. FAQ
Q: How long will you give me the reply?
A: We will contact you in 5 hours as soon as we can.
Q: What is the warranty of your prducts?
A: Our warranty is 12 months after the shipping date.
Q: What is the lead time of your products?
A: Normally our factory lead time is 10-12 working days.
Q: Can I OEM your products?
A: OEM and ODM customization are welcomed.
Q: What is your MOQ?
A: We have no MOQ limit, small quantity order is acceptable.
Q:What is the transport?
A: Express such as DHL, FedEx, UPS for freight prepaid, and we can
also use your own courier account to do the freight collect. For
more goods we can arrange by air or by sea.
|
