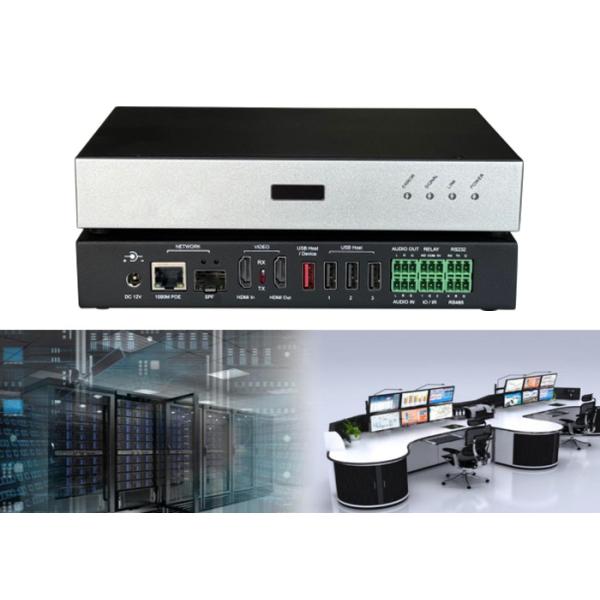

Av Over Ip System 4K HDMI KVM Extender Over Ethernet

1.Av Over Ip System 4K HDMI KVM Extender Over Ethernet

Hd multi-picture KVM all-in-one machine DVI-Vision-IP 4K HDMI KVM Extender over Ethernet

is a full use of video compression processing technology,

network technology, visualization technology, centralized control and other advanced technology,

to build IP network as the link, set video splicing processing, KVM collaborative management,

audio processing, centralized control and other functions and coding and decoding in one equipment.

It has the characteristics of distributed, networked, visual, and decentralized server. The product operation

fully considers the key performance of synchronization, real-time, compatibility, breathing effect and

color reduction in video processing. HDMI interface supports up to 3840x2160@30Hz input and output,

multi-screen splicing screen, I / O, IR, RS232 external control, providing cost reduction, easy wiring,

visual control, decentralized control, for a variety of HD or 1080P video application scenarios.

It can be widely used in the conference center, exhibition center, command center, transportation center, etc.

2. functional characteristics:

• Integrated encoder decoder, dial code transformation mode;
• support H.264 And H.265 Codec protocol;
• Really distributed, no server, no other auxiliary equipment, completely decentralized;
• Good real-time, good experience, KVM seat video output and host local average latency of 60ms;
• Operation visualization, KVM and client visualization operations;
• The HDMI interface supports up to 3840x2160@30Hz input and output;
• Sync performance is better, support LCD, LED, DLP splicing screen;
• Support multi-channel decoding, single screen 16 screen, roaming, superposition;
• Support the common custom window layout preset;
• Support for pre-layout and release;
• Support subtitle, scene, scene polling;
• Support for interface personalized customization.
• Av Over Ip System 4K HDMI KVM Extender Over Ethernet.

name	Av Over Ip System 4K HDMI KVM Extender Over Ethernet
model	WL-SS-2K60-H2
major function	1. The HDMI interface supports up to 3840x 2160@30Hz input and output. 2. The maximum support on the network side is 3840x 2160@30Hz coding. 3. The maximum network side support is 3840x 2160@30Hz decoding. 4. The working mode is divided into encoding mode, decoding mode, KVM mode and forwarding mode. 5, the encoding mode supports one-to-many. 6, decoding mode supports single screen multi- screen and picture splicing display, decoding resolution and HDMI resolution are 1080P, the maximum decoding 16 times 720 * 576@30Hz. 7. Decoding mode : support LCD and LED splicing, and the maximum splicing ranks is 12 * 16 splicing wall. 8, KVM mode, support mouse and keyboard control input source, such as computer, set-top box. 9, forward mode, support IPC and other RTSP flow preview and one-to-many. Unite screen output. 10, various modes can be RS 232 serial port, IO, infrared external equipment control.
material quality	Alloy material (supporting radium carving)
Leng, width and height	212.0mm × 145.0mm ×44 mm .0
Net weight	1010g
pilot lamp	1 x PWR lamp : the power supply indicator lamp 1 x ETH lamp : the network indicator lamp 1 x HDMI lamp : HDMI interface indicator lamp 1 x ACT lamp : CPU and temperature indicator lamp
DVI-Vision-IP 4K HDMI KVM Extender over Ethernet
Video input interface	1-way Type-A HDMI input, 19P head
Video output / loopback interface	1-way Type-A HDMI output, 19P head
