| Categories | Lithium Ion Cylindrical Battery |
|---|---|
| Brand Name: | TAC / OEM |
| Model Number: | ICR26650 11.1V 15AH |
| Certification: | ROHS MSDS |
| Place of Origin: | Shenzhen zhuhai |
| MOQ: | 500 pcs for single cell , 50pack for battery packs |
| Price: | usd 50-80 |
| Payment Terms: | 100% prepaid before shipping out |
| Supply Ability: | 50000 per week |
| Delivery Time: | 7 days for single cell 15-20 days for battery pack |
| Packaging Details: | 5 pcs for one carton |

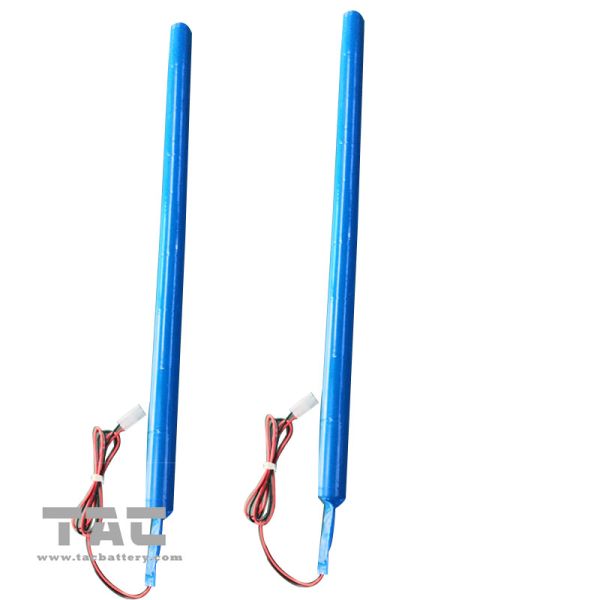

| Type: | lithium ion battery pack |
| voltage: | 11.1v |
| capacity: | 15ah |
| size: | 30*662mm |
| pcm: | SH0405B034X2-LX3S4A |
| discharge current: | 4A |
| single cell: | ICR26650 3.7V 5AH |
| pvc: | blue |
| Company Info. |
| Guang Zhou Sunland New Energy Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| No. | Items | Specifications | Remark |
1 | Capacity for assembled cell discharging by 0.2C | ≥14400mAh | Standard discharging method |
2 | Battery Voltage | 11.1V~11.7V | Delivery voltage, Within 10 days from Factory |
3 | Standard charge condition | Charge with 0.2C constant current and 12.6Vconstant voltage, charge to 12.6V,continue charging till current declineto ≤0.01C | Charge voltage:12.6V±0.02V Charge current:0.2C |
| 4 | Overcharging protection voltage | 12.39V-12.825V | |
5 | Maximum charge current | 4A | For continuous charging mod |
6 | Maximum discharge current | 4A | For continuous discharge mod |
7 | Standard discharging method | 0.2C constant current discharge to 9.0V, | 0.2C |
8 | Internal Impedance | Assemblage Impedance | Measure two sides of the drawing line after assembling. |
| NO. | Items | Units:mm | |
| 1 | Length/without PCB | L1 | Max602mm |
| 2 | Length//withPCB | L2 | Max662mm |
| 3 | Diameter/ | W | Max30mm |
| 4 | Wire/ | L3 | 750±3mm |
| NO. | Part name | Quantity | Unit/ | Remark | HSF |
| 1 | Cell/ | 9 | ea | ICR26650 5AH | ROHS |
| 2 | Connector/ | 1 | PCS | ROHS | |
| 3 | Solder/ | 0.2 | g | Lead Free | ROHS |
| 4 | Wire/ | 2 | PCS | 18AWG | ROHS |
| 5 | PCM/ | 1 | PCS | SH0405B034X2-LX3S4A | ROHS |
The period of warranty is One year from the date of shipment. TAC guarantees to give a replacement in case of cells with
defects proven due to manufacturing process instead of the customer abuse and misuse.
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over discharge.
5 battery packs for one cargon , the battery pack was protect by strong foam one by one
|
