| Categories | Dynamic Inclinometer |
|---|---|
| Model Number: | MDA426-232/485/TTL |
| Place of Origin: | Guangdong, China |
| Brand Name: | RION |
| Packaging Details: | CARTON |
| Supply Ability: | 10000 pcs per Month |
| MOQ: | 1 Piece |
| Price: | $28.00 - $35.00/Pieces |
| Certification: | CE, ISO |
| Payment Terms: | T/T, PayPal |
| Delivery Time: | 7 days for samples order |
| Usage: | Magnetic Sensor |
| Product name: | Dynamic-Static Dual Mode Inclinometer |
| power supply: | DC 9~36V |
| measuring range: | ±1~±90° |
| output: | MODBUS |
| Static accuracy: | 0.02 |
| Dynamic accuracy: | 0.3 |
| anti-vibration: | >2000g |
| Company Info. |
| Shenzhen Rion Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Description

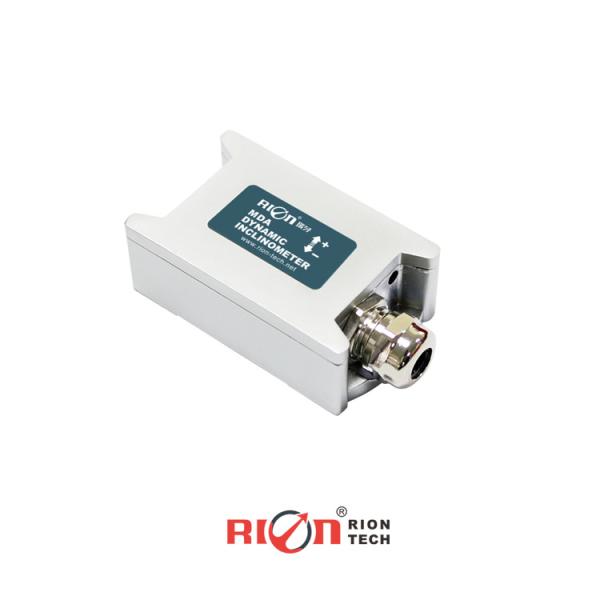

The MDA416T/MDA426T series is a new generation of digital
small-volume MEMS tilt sensor from RION. It has a two-channel Earth
Gravity Inclination Unit that converts into a tilt angle by
measuring static gravitational acceleration. Thereby the tilt and
pitch angle of the sensor output relative to the horizontal plane
can be measured. Output mode RS232, RS485 level interface standard
is optional. Due to the built-in MCU control system, the linearity
of the sensor output is quadraticized, which compensates for the
accuracy of the analog type due to insufficient correction.
This product adopts non-contact measurement original quantity,
which can output the current attitude inclination angle in real
time. It is easy to use and does not need to retrieve the two
surfaces of relative change. This product is suitable for static
and dynamic measurement. It is an ideal choice for industrial
automation control and platform measurement attitude. It has strong
resistance to external electromagnetic interference and can adapt
to long-term work in industrial harsh environment.
Technical Data:
●size:L61×W35×H21mm
Application
● Satellite antenna search star
● Rail-mobile monitoring
●Tilt angle measurement of High-altitude construction machinery
●oil-well drilling equipment
●Radar detection of vehicle platform
●Underground drill posture navigation
●Based on the angle direction measurement
●Satellite communications vehicle posture detection
●Shield pipe jacking application
●Ship's navigation posture measurement
●Geological equipment inclined monitoring


|   |
