| Categories | Optoelectronic Components |
|---|---|
| Brand Name: | CONO |
| Model Number: | LRF3000 |
| Certification: | ISO,CE,ROSH |
| Place of Origin: | China |
| MOQ: | 1 PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 PCS PER YEAR |
| Delivery Time: | 7-30 Days |
| Packaging Details: | Negotiable |
| Laser Wavelength: | 1535nm |
| Range Resolution: | 20m |
| Transport Package: | Safety Export Packing |
| Specification: | Small |
| Ranging frequency: | Ranging frequency |
| Company Info. |
| Hubei Cono Technology Co,Ltd |
| View Contact Details |
| Product List |

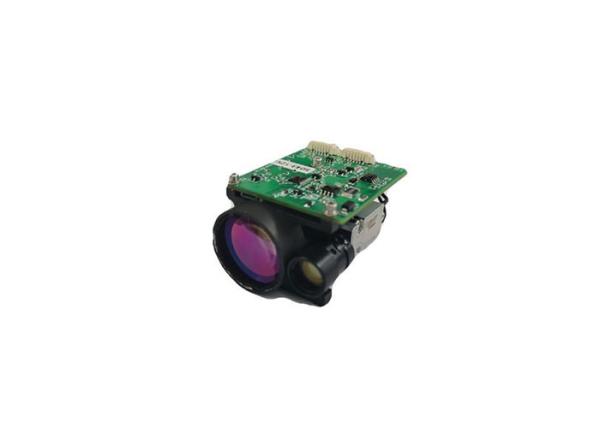

The laser rangefinder is a kind of equipment for measuring the
target distance., which can measure the target distance information
by detecting the return signal of the emitted laser. This series of
products has mature technology and stable performance. It can test a variety of static and dynamic targets and can be
equipped or applied on a variety of platforms.
Application: Photoelectric reconnaissance and target location.
| Main parameters | |
| Eye safety/level | Class 1/1M |
| Laser wavelength | 1535nm |
| Distance measuring capability | ≥3km(2.3m x 2.3m vehicle, target reflectivity: ≥0.3 ) |
| Minimum measuring range | 20m |
| Range resolution | 20m |
| Ranging frequency | 1Hz~10Hz |
| Accuracy of ranging | ≤±1m(RMS) |
| Detection probability | ≥98% |
| False alarm rate | ≤1% |
| Multiple target detection | ≥3 |
| Weight | ≤70g |
| Dimensions | ≤67mm×44.5mm×36mm |
| Divergence angle | ≤0.3mrad |
| Power consumption | Average power consumption≤1.5W peak power consumption≤5W |
| Adaptability of power supply | DC 5V/12V/24V optional |
| Communication type | RS422/RS232/TTL optional |
| Temperature tes | Working temperature-40℃~+70℃ Storage temperature-55℃~+75℃ |
| Vibration test | Meet the vibration requirements of airborne, shipborne and vehicle-mounted equipment in GJB150.16A.2009 |
| Impact test | Meet the impact requirements of airborne, shipborne and vehicle-mounted equipment in GJB150.18A.2009 |

|   |
