| Categories | Mobile Data Terminal Tablet |
|---|---|
| Brand Name: | UniStrong |
| Model Number: | E9638-A32 |
| Place of Origin: | China |
| MOQ: | 5 |
| Payment Terms: | T/T |
| Supply Ability: | 20000 |
| Delivery Time: | THD |
| Packaging Details: | GIFTBOX PACKAGE |
| Focus On: | To be the leading provider of automotive industry , we focus on industrial vehicle management |
| Certification: | 3C, ROHS |
| CAN interfaceperature: | -20℃~+70℃ humility:0%~90%RH" |
| Item name: | Android Quad-core Vehicle Intelligent Display Terminal |
| Storage temperature: | -30℃ ~ 80℃ |
| The full functional: | Professionally solving fleet management problems in various automotive industries to meet all your needs. |

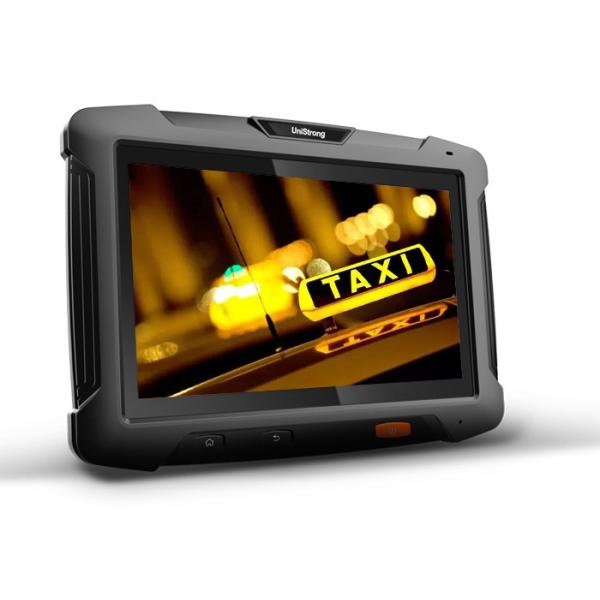

E9638A Comply with IP65 Rating, Powerful Qualcomm Quad core
processor with AI solution
1. E9638-A is a very rugged vehicle-mounted terminal specially
designed to improve logistics efficiency
2. It has the characteristics of IP65 waterproof and dustproof,
wide temperature operation (-30 ~ 50 °C/-22 ~ 122 °F), strong body
3. E9638-A can highly meet the application requirements of fleet
management. It can withstand vibration, dust and water, and
supports a wide operating temperature, making it very suitable for
extreme vehicle environments.
| Product appearance | ||||||
| Type | Detail | Standard configuration | ||||
| IP rate | waterproof | IP65 | ||||
| LCD | dimension | 7",1024*600 | ||||
| TP | touch panel | Support 5 points capacitive screen,G+G | ||||
| Speaker | built in | 4Ω/2W | ||||
| super capacitor | built in | 5.4V/10F | ||||
| Hardware Configuration | ||||||
| Type | Detail | Standard configuration | ||||
| CPU | model | Qualcomm SDM450,Octa-core ARM Cortex-A53 64-bit CPU @ 1.8 GHz | ||||
| RAM | DDR3 | 2GB | ||||
| ROM | EMMC | 16GB | ||||
| Sensor | Accelerometer | Triaxial accelerometer | ||||
| Wireless communication | ||||||
| Type | Detail | Standard configuration | ||||
| WIFI | WIFI module | 2.4G+5G WiFi,IEEE802.11 g/b/n /ac | ||||
| Bluetooth | built in | BT2.1+EDR/3.0/4.1/4.2 BLE | ||||
| GNSS | built in | GPS+BD module | ||||
| 3G/4G | built in | Module:SC60CEYB-16GB-UGAD cat6 (LTE 4G CHINA) LTE FDD :B1/B3/B5/B8 LTE TDD:B34/B38/B39/B40/B41 TD-SCDMA:B34/B39 WCDMA :B1/B8 CDMA2000/EVDO:BC0 GSM:900/1800MHz | ||||
| M1,M2,M3 port function extension | ||||||
| Type | Detail | Standard configuration | ||||
| M1 PORT(12pin) | Extend | RS232 UART*2 DC11V output 500mA*3 Input IO(9-36V)*1 RS485*1 | ||||
| M2 PORT(10pin) | Extend | CAN *2 1*input IO(2-36V)*1 power input ,B+,B- ,ACC (9-36V) | ||||
| M3 PORT(8pin) | Extend | USB-HOST*1 Camera*2 | ||||
| Interfaces | ||||||
| Type | Detail | Standard configuration | ||||
| USB device | USB | Micro-USB *1 | ||||
| USB HOST | USB HOST | USB type-A *1 | ||||
| Double SIM Card | 3G/4G SIM card | Standard SIM card interface*1 + E-SIM *1 | ||||
| TF Card | TF | support SDHC*1 max:128GB | ||||
| GNSS | Fakra | Fakra C head *1 | ||||
| 4G | Fakra | Fakra D head *1 | ||||
| M1,M2,M3 port | Extend | 12pin/10pin/8pin | ||||
| button | button | power button*1, Function buttons*2 | ||||
| Accessory | ||||||
| Type | Detail | Standard configuration | ||||
| M1 cable | full function | E9638_12pin full functional cable | ||||
| M2 cable | full function | E9638_10pin full functional cable | ||||
| M3 cable | full function | E9638_8pin full functional cable | ||||
| GNSS antenna | external | 1575.42±1.023MHZ 1602±8MHZ, DC current:10mA,FAKRA C head；80cm length | ||||
| LTE antenna | external | 4G LTE,central frequency 824MHz~960MHz,1710MHz~2200MHz,2300MHz~2700MHz；FAKRA D head,80cm length | ||||
| Camera | Optional | Optional 1080P AHD camera | ||||
| Software Configuration | ||||||
| Type | Detail | Standard configuration | ||||
| OS | version | Android 9.0 | ||||
Service
1.Standard free 1 year warranty for the product;
2. Sample test and debug support;
3. ODM/Customized requirements assessment and quotation;
4. Product ID design ;
FAQ
1. Question: How to contact you for detail information?
Answer: You can contact us through "Contact" button. Or you can
write email to us at: mk.hu@unistrong.com
2. Question: Are you manufacture?
Answer: Yes, we are the original manufacture. We have 50-person
R&D team to support various customer’s demands.
3. Question: Will the sample provide software SDK?
Answer: Yes, we will support software debug according to your
demands and requirements.
4. How fast you could make the delivery?
Answer: 2 weeks for standard configuration; And if the product are
customized, the delivery date will be longer according to materials
status.
|
