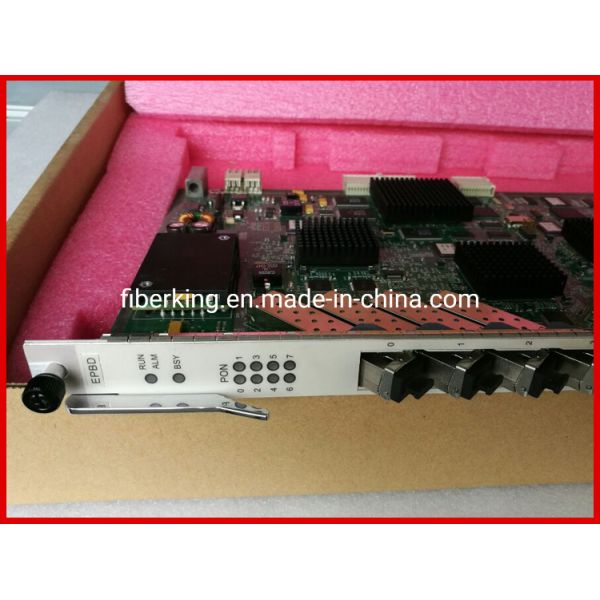

Huawei EPON 8 port Service Board EPBD OLT MA5683T MA5608T
EPBD full equipped with 8 light module, is the 8 port OLT EPON interface board, and the terminal ONT device to achieve the EPON service access.
EPBD Basic principle introduction:
Control module to complete the single board software loading, operation control, management and other functions.
Exchange module to achieve the convergence of 8 EPON port signals.
Interface module to realize the mutual conversion between EPON optical signal and Ethernet message.
The power supply module provides a working power supply for each function module in a single board.
The clock module provides a working clock for each function module in a single board.
Optical module introduction:
Form:SFP/ESFP
Rate:1.25Gb/s
Optical connector type:SC/PC
Fiber type: single mode
Maximum light splitting ratio: 1:64
Apply to MA5680T/MA5683T/MA5608T
H809EPBD supports| CAR group | IPv6 |
| Load sharing | 1588v2 |
| Prevent IP spoofing | Automatic shutwoen of an idle port |
| Prevent DOS attacks | Optical Performance Monitor (OPM) |
| ONU-based shaping or queue-based shaping | Automatic shutdown at a high temperature |
| Rogue ONU detection and isolation | Temperature query and high temperatire alarm |
| Type B / Type D protection | Prevent MAC address spoofing |
    |
|
