Bar Type HD TFT Display 480x128 IPS All Viewing Angle RGB Interface

Categories	HD TFT Display
Brand Name:	OEM
Model Number:	CH390WQ01
Certification:	ROHS 、ISO9001 、CE
Place of Origin:	ShenZhen , China
MOQ:	100 pcs
Price:	/
Payment Terms:	T/T
Supply Ability:	200K PCS / Month
Delivery Time:	7 - 15 working days
Packaging Details:	All the products are packed in right way to keep it safe. For small sizes of products we use tray + carton, For bigger sizes we use foam slot + carton. we also design packages according to customers' requirements
Module type:	3.9 inches
Display Mode:	Transmissive / Normally black / IPS
Number of Dots:	480 * 128
Viewing Direction:	all viewing angle
Module size:	105.5 * 40.6 * 2.95 mm
TFT Active area:	95.04 * 25.34 mm
Interface:	RGB / Oem
Luminace:	500 Nit

Contact Now

Add to Cart

Company Info.

Shenzhen ChengHao Optoelectronic Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

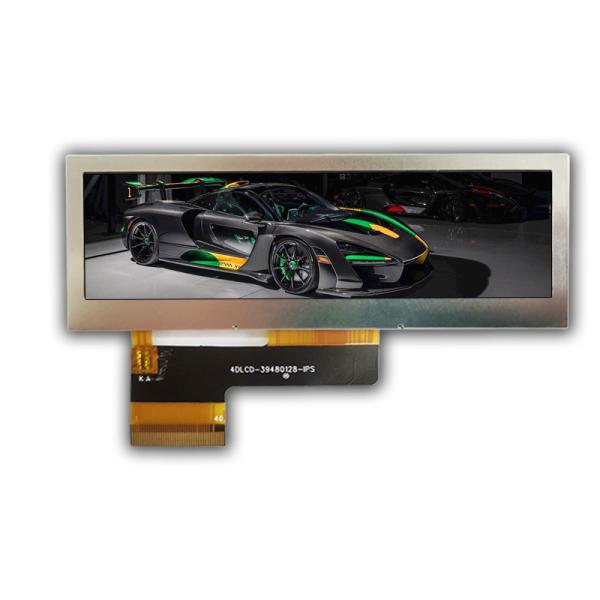

Bar Type HD TFT Display 480x128 IPS All Viewing Angle RGB Interface

Bar Type HD TFT Display 480x128 IPS All Viewing Angle RGB Interface

MODEL NO.	CH390WQ01
Module type	3.9inch
Display Mode	Normally black/IPS/
Number of Dots	480*128
Viewing Direction	All viewing angle
Module size	105.540.62.95 mm
TFT Active area	95.04*25.344 mm
Interface	RGB
Luminace	500 Nits

ChengHao Display model CH390WQ01A is a color active matrix thin film transistor (TFT) liquid

crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is com

-posed of a TFT LCD panel, a driving IC, a high brightness back-light and FPC.

This TFT LCD has a 3.9 (Bar screen) inch diagonally measured active display area with 480*128

resolution.

The driver used for this project is the SC7283 or compatible and can display 16M colors by 24bit

R.G.B.signal input. The driver is mounted on the glass and the interconnection via FPC including

components to drive the display module. Support RGB interface.

In addition, FPC can also be customized according to customer requirements, such as modifying

backlight and FPC structure, interface definition, etc.

RoHS Compliance & Halogen Free.

Module Type	Display Area	Display Mode
1.44 inch	25.50 * 26.50 mm	Normally White IPS, Transmissive
1.44 inch	25.50 * 26.50 mm	Normally White TN, Transmissive
1.50 inch	29.76 * 22.32 mm	Normally Black IPS, Transmissive
1.54 inch	27.72 * 27.72 mm	Normally Black IPS, Transmissive
1.54 inch	27.74 * 27.74 mm	Normally Black IPS, Transmissive
1.77 inch	28.03 * 35.04 mm	Normally White TN, Transmissive
1.80 inch	28.03 * 35.04 mm	Normally White TN, Transmissive
2.00 inch	30.60 * 40.80 mm	Normally White TN, Transmissive
2.10 inch	Circular display area	Normally White IPS, Transmissive
2.31 inch	46.75 * 35.06 mm	Normally White TN, Transmissive
2.40 inch	36.72 * 48.96 mm	Normally White TN, Transmissive
2.40 inch	36.72 * 48.96 mm	Normally White IPS, Transmissive
2.80 inch	43.20 * 57.60 mm	Normally White TN, Transmissive
2.80 inch	43.20 * 57.60 mm	Normally White IPS, Transmissive
3.00 inch	36.72 * 65.28 mm	Normally Black IPS, Transmissive
3.20 inch	48.60 * 64.80 mm	Normally White TN, Transmissive
3.50 inch	70.08 * 52.56 mm	Normally White TN, Transmissive
3.50 inch	70.08 * 52.56 mm	Normally Black IPS, Transmissive
4.00 inch	51.84 * 86.4 mm	Normally Black IPS, Transmissive
4.00 inch	71.86 * 70.18 mm	Normally Black IPS, Transmissive
4.30 inch	95.04 * 53.86 mm	Normally White TN, Transmissive
4.30 inch	95.04 * 53.86 mm	Normally Black IPS, Transmissive
5.00 inch	110.88 * 62.83 mm	Normally White TN, Transmissive
5.00 inch	108.00 * 64.8 0mm	Normally Black IPS, Transmissive
5.50 inch	68.04 * 120.96 mm	Normally Black IPS, Transmissive
6.00 inch	74.52 * 132.48 mm	Normally Black IPS, Transmissive
7.00 inch	154.08 * 85.92 mm	Normally White TN, Transmissive
7.00 inch	153.6 * 90 mm	Normally White TN, Transmissive
7.00 inch	154.21 mm * 85.92 mm	Normally Black IPS, Transmissive
8.00 inch	107.64 * 172.22 mm	Normally Black IPS, Transmissive
9.00 inch	196.61 * 114.15 mm	Normally White TN, Transmissive
10.1 inch	135.36 * 216.58 mm	Normally Black IPS, Transmissive
