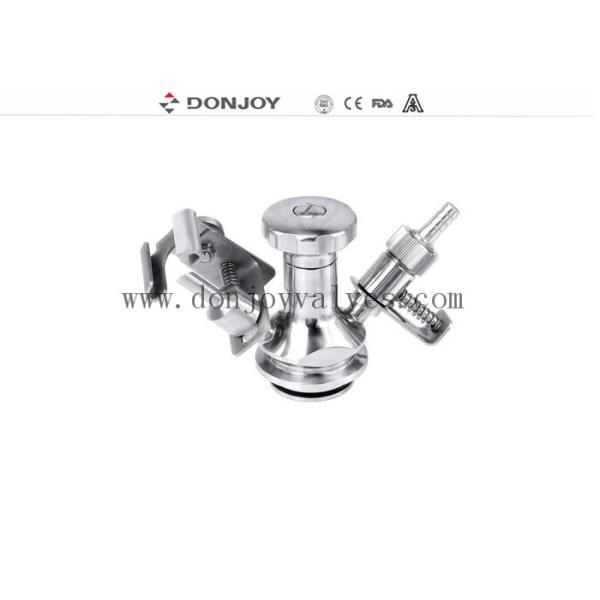

SS316l 1/2" Aseptic Manual Sampling Valve With EPDM Seal

SS 316L manual aspetic sampling valve with directly sample conbine with EPDM Seal

Quick Detail

Sampling Valve

Size:12.7mm,1/2",3/8",1/2",3/4"

Type: Automatic return type (Manual)

Gasket: EPDM,PTFE

Working Pressure:6Bar

Temperature: 130 Degree(EPDM) 150Degree(PTFE)

Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm

Connection: Thread, clamp, Weld, Tank welding

Certificate: PED97/23/EC,FDA 177.2600

Specification

Drawing

Application :

The aseptic sampling valve is applied to beer, milk, beverage, fruit juice, pahmacy industries etc...

Relate products

Valve body with various configurations

Tag : Sampling valve, Donjoy Valve, Sanitary valves

Donjoy was founded in 1993, with registered capital RMB105.58 million(about 15million USD) We focus on developing high-precision PID valve positioner, Valve Control unit, Valve Position feedback device, intelligent automatic control valve, proportional valve, process control valve, high purity pump, homogeneous mixing pump, cleaning technology, pressure vessel, pipeline safety control technology, high clean pipe fitting&pipeline accessories and integrating r&d, production and sales as an integrated national high-tech enterprises. Donjoy’s products are widely used in bio-pharmaceutical, food and beverage, wine, fine chemicals and other industrial fields. Donjoy’s leading technology and innovation solutions meets growing demand in the industry of bio-pharmaceutical, food and beverage from the whole world, special emerging market.

Raw material, processing technology, welding technology, surface treatment and other technology from Donjoy have achieved advanced level in international market. It also complies with a series of international standards and specifications such as ASME BPE, EHEDG, FDA and 3A , It has passed the EU Pressure Equipment Directive (PED-97/23/EC) and (MD-06/42/EC) issued by the German TÜV organization; the 3-A health standard certification issued by the 3A organization; China Safety Valve Special Manufacturing Equipment (TS) License , China Quality Certification Center (CQC) and Quality Management System Certification (ISO9001:2015) and many other international authoritative certifications.

With advanced technology, excellent quality and perfect after-sales service system, Donjoy was awarded as National High-tech Enterprise, Provincial Famous Trademark, Science and Technology Enterprise, Innovative Enterprise, Patent Demonstration Enterprise, R & D Center Enterprise, AAA Credit Enterprise and many other honorary
