| Categories | TFT LCD Module |
|---|---|
| Brand Name: | ROYAL DISPLAY |
| Model Number: | RYTPQ35SN22-07 |
| Certification: | SGS, ROHS |
| Place of Origin: | CHINA |
| MOQ: | 500pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, Western Union, T/T, MoneyGram |
| Supply Ability: | 10k/Month |
| Delivery Time: | 15~25 working days |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Display Type: | TFT LCD |
| Resolution: | 320 X 3(RGB) X 240 |
| Display mode: | Normally White/Transmissive |
| Viewing angle: | 12 O'clock |
| Interface: | MCU |
| Gray Scale Inversion Direction: | 6:00 |
| Outline Size (mm): | 76.9(W) X 63.9 (H) X 4.35 (D) |
| Touch Panel Size(mm): | 76.6*63.6 |
| Display Color: | 262K |
| Driver IC: | SSD2119 |
| Application: | Industrial Application,Multi-Touch Query Machine,Desktop Monitor |
| Warranty: | One year |
| Company Info. |
| Royal Display Co.,Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

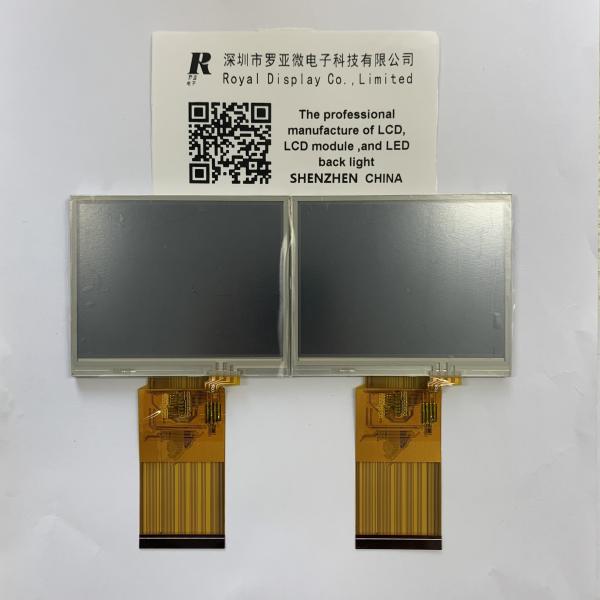

MCU Interface 3.5′ ′ 320*240 TFT LCD Display with Resistive Touch Panel
| Item | Description |
| Product Name | 3.5'' 320*240 TFT LCD Module |
| Model No. | RYTPQ35SN22-07 |
| Dot Format | 320RGB(H)x240(V) |
| Outline (mm) | 76.9(W) x 63.9 (H) x 4.35 (D) |
| Active Area(mm) | 70.08(H) x52.56 (V) |
| Display Mode | Normally white/Transmissive |
| Pixel Arrangement | RGB-Vertical Stripe |
| Display Color | 262K |
| Driver IC | SSD2119 |
| Gray scale inversion Direction | 6 o'clock |
| Viewing Direction | 12 o'clock |
| Brightness | 230 cd/m2 |
| Operating Temp | -30º C~70ºC |
| Storage Temp | -30º C~80ºC |
| Pin No. | 60pins |
APPLICATION
Our lcd module size are from 2.8 inch to 10.1 inch which are widely
used in digital camera, dv, security monitoring, carcorder, pmp,
mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
ABOUT TFT LCD DISPLAY
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily.
Often seen in cell phones, tablets, cameras and countless other
devices, this technology offers several hundreds of thousands of
colors with a high pixel count to offer supreme visual clarity. In
addition, all TFTs are available off the shelf with resistive and
capacitive touch panel options.
Features
Broad selection of off the shelf products
Sunlight readable options available
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available
Customizable FPC cables, LED backlights, and bezels
