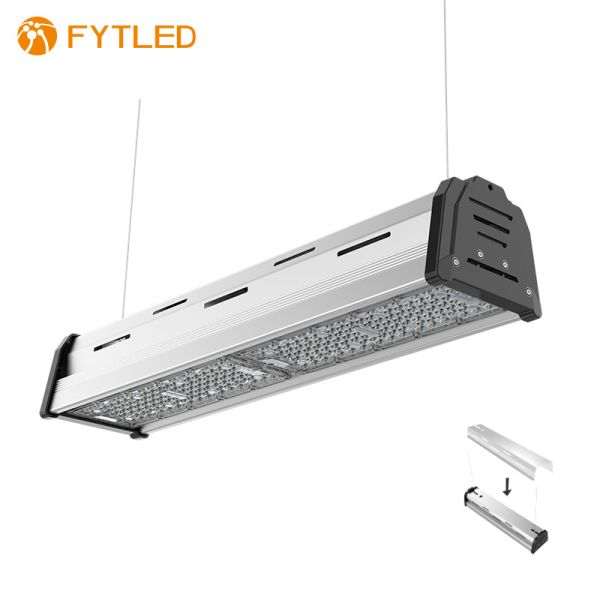

Indoor 120W 17400LM Dimmable LED High Bay Lights , 2 Ft Linear High Bay

LINEAR LIGHT T31D 120W 30DEGREE CE ROHS 17000LM 5 YEARS WARRANTY

Features

OPTIONS

AREA OF APPLICATION

Can be efficiently used in heights up to 30m warehouse, tall halls, loading areas and freight yards

Basic Specification

Model	Nominal wattages	Nominal voltage	Rated luminous efficacy	Nominal luminous flux	Beam Angle	LED Quantity	CRI
T31D-80W01	80W	AC100~277V 50~60Hz	140±10	11200±800	30°60°90°30*70° 40*130°	112 PCS EMC 3030	>70
T31D-120W02	120W		145±10	17400±1200		224 PCS EMC 3030
T31D-150W02	150W		140±10	21000±1500		224 PCS EMC 3030
T31D-200W03	200W		145±10	29000±2000		336 PCS EMC 3030
T31D-240W03	240W		140±10	33600±2400		336 PCS EMC 3030
T31D-300W04	300W		140±10	42000±3000		448 PCS EMC 3030
Lumen Plus (160lm/W)
Model	Nominal wattages	Nominal voltage	Rated luminous efficacy	Nominal luminous flux	Beam Angle	LED Quantity	CRI
T31D-80W02	80W	AC100~277V 50~60Hz	165±5	13200±400	30°60°90°30*70° 40*130°	224 PCS EMC 3030	>70
T31D-150W03	150W		160±5	24000±750		336 PCS EMC 3030

Electrical data Photometrical data

Operating frequency	47-63HZ	Available light colors	warm white;natural white; daylight white
Type of current	AC100-277V100-350V277-480V	Available color temperatures	3000K;4000K;5000K;6000K
Power factor λ	>0.9	Color rendering index Ra	>70
Efficiency in %	>90%	Standard deviation of color matching	<5
Start time (0.2s / 0.5s / … )	0.1S	UGR (Unified Glare Rating)	<27
Warm-up time to 60 % (1.5s / 2s / … )	0.5S	Available beam angles	30°/60°/90°/30*70°/40*130°

Packing Information

Model	Dimension(MM)	CTN SIZ E(CM)	QT Y/ CT N	Net Weight/pcs(kg)	Gross Weight /CTN(kg)
T31D-80W01	320*145*116	37*34*17	2PCS	2.6	6.8
T31D-80W02/ 120W02/150W02	620*145*116	67*34*17	2PCS	4.2	10.2
T31D-150W03/ 200W03/240W03	920*145*116	97*34*17	2PCS	5.8	14.5
T31D-300W04	1220*145*116	127*34*17	2PCS	7.8	19.5

FAQ

1. Q: Where is your target market?

A: Europe is our main market, followed by North America, Asia, Australia and South America have our customers. Our products have CE, Rohs, TUV, ENEC, UL, CUL, DLC, SAA and other certifications, I believe it can meet your needs.

2. Q: What is your MOQ?

A: We support purchasing samples to check the quality. When you buy samples, MOQ is 1Pcs.

3. Q: How long is the sample production time?

A: About 4-7days. Butif you want a specialsample, it will need some times to make the mold.

4. Q: What is the Payment?

A: For new customers,usually we adopt the T/T, and we have 2 ways:
1) T/T 100%

2) 30% advance deposit, the Balance should be paid off before shipment.
As our cooperation deepens, we can discuss other payment terms

5. Q:How long is the delivery time?

A: About 7 days

Founded in June 2008, FYTLED is China High-tech and Shenzhen High-tech enterprise.

With expertise in industrial LED lightings, FYTLED is a well known manufacturer in global market by offering a variety of indoor and outdoor LED lighting products, such as high bay&low bay, linear highbay,street light, flood light, sports and stadium lights and so on. The main products are all certified with key licenses,including UL, cUL, DLC, TUV, ENEC, CE, RoHS, CB, GS, SAA and CTick.

With over 350 employees and a well-equipped workshop of 170,000 square feet, FYTLED advances LED luminaire manufacturing and facilities with certain setups for both production and quality control, for instance, high speed SMT machines, computer controlled power supply burn-in testing system, humidity testing machine, high temperature aging oven, salt spray testing machine,water-proof testing machine,automatic optical inspection systems, integrating spheres and IES tester. All procedures, counting from supply chain to delivery, are all detail-minded and managed within ISO9001:2015 system.

FYTLED is dedicated to creating new ideas of product innovation and development with state-of-the-art technologies. With a team of more than 30 engineers, our R&D is proud of contributing its experience in industrial design, power supply, heat dissipation analysis, optical lens design, etc. Accordingly, all the layouts are fully qualified by UL and EU electrical safety standards, with more than 30 patents of hape design and utility model in addition. All new products must pass different strict test, such as high/ low temperature test, heat dissipation test, surge test, EMI test, water-proof test, drop test…

FYTLED luminaires have been 100% exported to more than 40 countries, including Europe, USA,South American, Asia and Middle East etc. It is widely applied in various industrial and publicspaces, such as warehouse, factory, football field, tennis court, parking lot, school, supermarket, roads and streets.

FYTLED devotes itself to building a LED industry supply chain including die-casting plant, power driver manufacturing and luminaire assembly, to provide our global customers high quality and cost-effective products and solutions. Come and join us! Our experienced and professional sales team may come up with promising ideas and support your market in a further step!
