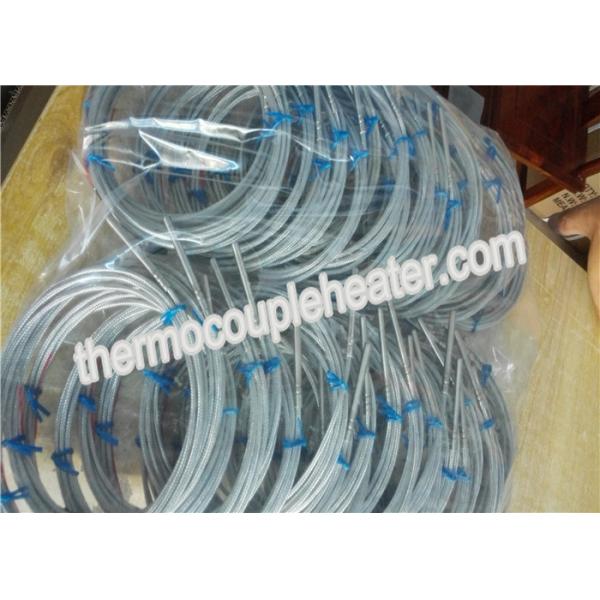

Stainless Steel RTD PT100/PT1000 Resistance Temperature Detector With Wire

Stainless Steel RTD PT100/PT1000 Temperature Sensor with wire

Features:
· 1. Wide operating temperature range, good stability and reliability.
· 2. Easy to installation and manipulation as the sealing can be done according to environment and conditions there it is applied by customer.
· 3. Accurate testing can reflect temperature change precisely.

Specification:

Technical Specs:
Pt100 sensor
Extension cable - 3 wires/2 wires
Standard cable length:2.5 mt

Technical details:
Pick-up range: from - 50 °C to 220 °C
Protection: IP 68

Sensor:
Type: RTD Pt 100 ohm at 0°C
coefficient =0.385 Ω/C°
Calibration: IEC 751, BS 1904
Accuracy: Class A/B

Cable:
Flexible tinned copper wires 3x22 AWG
Primary insulation: silicon rubber
Shield: All. foil shield 100%
Secondary insulation: blue silicone rubber
Colour: No. 2 red conductors
No. 1 white conductor

Tests:
Insulation test in ambient temperature (>5000M Ω with
2500 Vdc)
Dielectric strength into water (with 5000 Vac for 60
seconds)
