MJC092 Deep Groove Ball Bearing High Temperature Resistance Lasting Silent Low Noise

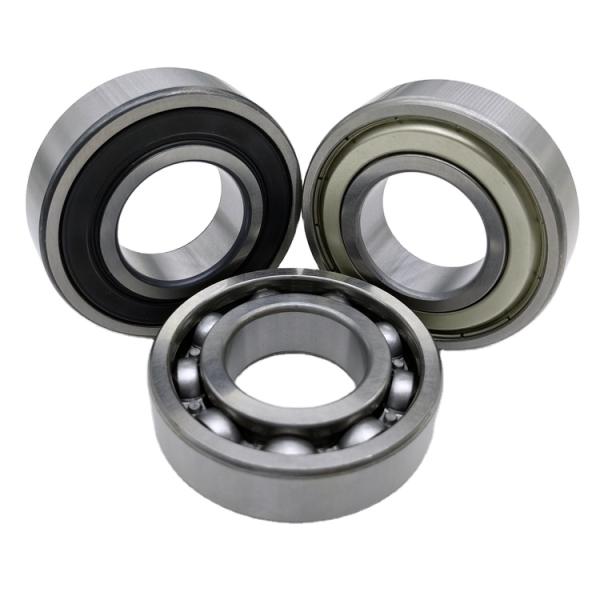

Deep Groove Ball Bearing 6003ZZ High Temperature Resistance

Product Description

Deep groove ball bearing is one of the most widely used rolling bearings. It is characterized by small friction resistance and high speed. It can be used to bear radial load or combined load of radial and axial at the same time. It can also be used to bear axial load.

The basic deep groove ball bearing consists of an outer ring, an inner ring, a group of steel balls and a group of retaining frames.

There are two types of deep groove ball bearings:Single row and Double row. The structure of deep groove ball can be divided into sealed and open type. Open type means that the bearing does not have a sealed structure. Sealed deep groove ball can be divided into dust-proof seal and oil-proof seal.

Compared with other types, deep groove ball bearing is easy to achieve higher manufacturing accuracy due to its simple structure, so it is convenient for series mass production with low manufacturing cost and widely used. Deep groove ball bearing can be used for gearbox, instrument, motor, household appliances,internal combustion engine, traffic vehicles, agricultural machinery, construction machinery, engineering machinery.

Feature:

1. High temperature resistance, with high glass transition temperature and melting point (334℃), its load thermal deformation temperature is up to 316℃, continuous use temperature is 260℃;

2. Superior sliding characteristics, suitable for use with strict requirements for low friction coefficient and wear resistance;

3. Hydrolysis resistance, continuous use in high temperature and high pressure water can still maintain excellent characteristics;

4. Radiation resistance; 5. Fatigue resistance; 6. Corrosion resistance

7. Solubility resistance

8. Good wear resistance, anti-static electrical insulation performance

Pls check the following size for bearing inside:

Model	Inner Diameter(mm)	Outside Diameter (mm)	Width(mm)	Weight (KG)
608ZZ	8	22	7	0.012
6000ZZ	10	26	8	0.019
6001ZZ	12	28	8	0.022
6002ZZ	15	32	9	0.031
6003ZZ	17	35	10	0.04
6004ZZ	20	42	12	0.068
6005ZZ	25	47	12	0.078
6006ZZ	30	55	13	0.113
6007ZZ	35	62	14	0.148

Product Tags:


*From:	Your email address is incorrect!
*To:	Shaanxi Fortune Industries Co.ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Deep Groove Ball Bearing
Brand Name:	SFT
Model Number:	6003ZZ
Place of Origin:	China
MOQ:	negotiable
Price:	negotiable
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	50000PCS/MONTH
Delivery Time:	20-45DAYS
Packaging Details:	carton,pallet
Material:	Bearing Steel
Seals Type:	open,ZZ, 2rs
ball material:	steel
Weight:	0.04KG
Number of Row:	Single row
Bore Size:	8 - 35 mm
