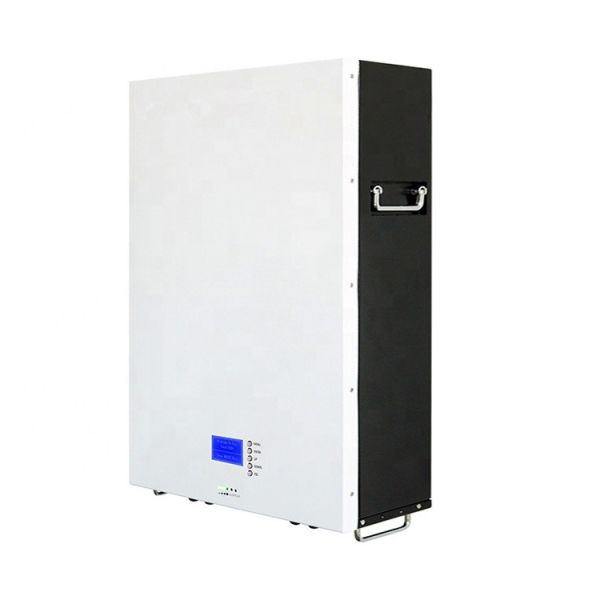

10Kwh 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs 16S1P With Inverter

Categories	Lifepo4 Storage Battery
Brand Name:	Amazing Energy
Model Number:	LI-51200-W
Certification:	CE ROHS MSDS UN38.3
Place of Origin:	China
MOQ:	10 packs
Payment Terms:	T/T
Supply Ability:	100 module per month
Delivery Time:	15-20 days
Packaging Details:	Standard Export Carton
Product name:	48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs
Rated voltage (V):	51.2V
Depth of discharge:	90%
Battery Size:	180480650mm
Warranty:	5 years
Weight:	100KG
Rated Capacity (Ah):	200Ah
Cycle life:	4000 times @80% DOD

Contact Now

Add to Cart

Company Info.

Shenzhen GreFlow Energy Co., Limited

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

10Kwh 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs 16S1P With Inverter

10Kwh 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs 16S1P With Inverter

Specification of 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs

Model	SP5000U- 5KWH	SP7000U- 7KWH	SP10000U- 10KWH
Voltage	48 V	48 V	48 V
Capacity	100 Ah	150 Ah	200 Ah
Energy	4.8 kWh	7.2 kWh	9.6 kWh
Operation voltage	42-54 Vdc	42-54 Vdc	42-54 Vdc
Max.charging voltage	54 Vdc	54 Vdc	54 Vdc
Max.charging and discharging current	100A	100A	100A
Max Power	4800 W	7200 W	9600 W
Life time(25°C)	10 years
Life cycles(80% DOD, 25°C)	6000 Cycles
Storage time / temperature	5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature	-20°C to 60°C @60+/-25% Relative Humidity
Storage temperature	0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard	UL1642, IEC62619, UN38.3, ROHS,CE-EMC
Enclosure protection rating	IP21
Dimensions(L×W×H)	680×480×180(220)mm
Weight	58.5 kg	75 kg	96.5 kg

The Advantages of 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs

Compact Size

High Energy Density Battery, Enabled Powerbox Ultra-Compact, Light
Weight.Compact Size Makes Powerbox Easy To Handle.

Modular Design
Modular Design Gives The End Customers The Power Of Choice Of
Capacity Deliver Up To 140KW With Single Max Module (10.24KWh) At
14pcs Parallel Connection.
Long Life and Safety
Vertical Industry Integration Ensures More Than 6000 Cycles With
80% DoD Safe Lithium Iron Phosphate Battery Cell.
Wide Compatibility
Our Battery is Proud To Announce That Our Modules Can Cooperate
With Most Inverters On The Market.
More Brands Are Coming Soon...
Detail Images of 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs
Applications of 48v 200ah Lifepo4 Lithium Iron Phosphate Battery Packs
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and
Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical
Instrumnt / Military Equipment 3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED
Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric
Skateboard / Electric bike / Electric Scooter / Electric bicycle
--LED Backup / Engine Starting Battery,etc.
