| Categories | Transformer Coil Winding Machine |
|---|---|
| Brand Name: | STT |
| Model Number: | ZPX150-3 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Delivery Time: | 35 days |
| Packaging Details: | seaworthy packing |
| Product name: | transformer coil winding machine |
| Wire type: | flat wire or round wire |
| Control system: | PLC |
| Winding speed: | 0- 200rpm |
| Wire guide: | 3 pcs |
| Warranty: | 12 months |
| Color: | optional |
| Wire material: | copper / aluminium wire |
| Company Info. |
| Suzhou Tronsing Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Three Heads Wire Coil Winder Transformer Coil Winding Machine PLC Control
Description of transformer coil winding machine ZPX150-3
Transformer coil winding Machine ZPX150-3 is a special equipment for winding transformer coils and other similar products. The transformer coil winding machine is provided with three wire guides, which makes the coil winding machine wind three coils at once. The transformer coil winding machine can wind not only three coils with maximum length 150mm per coil, but also one coil with maximum length about 500mm. With touch screen, the transformer coil winding machine can be operated easily.
Quick details of transformer coil winding machine ZPX150-3
Technical parameters of transformer coil winding machine ZPX150-3
Typical standard specifications of ZPX150-3 are shown below, however these can be easily modified as requested.
| Center Height: | 900 mm |
| Square Shaft Size: | 40x40x700 mm |
| Round Wire Diameter: | 0.3～4.0 mm |
| Max. Flat Wire Size: | 3x10 mm |
| Max. Rotating Diameter: | 400 mm |
| Max. Each Coil Length: | 150 mm |
| Winding Motor Power: | 4kw |
| Winding Speed: | 0～200 rpm |
| Winding Speed Regulation: | Variable frequency and stepless speed regulation |
| Control system: | PLC |
| Spread Pitch: | Min. step: 0.01 mm |
| Counting Mode: | 5-digit counting, |
| Max. Turns Number Preset: | 9999.9 |

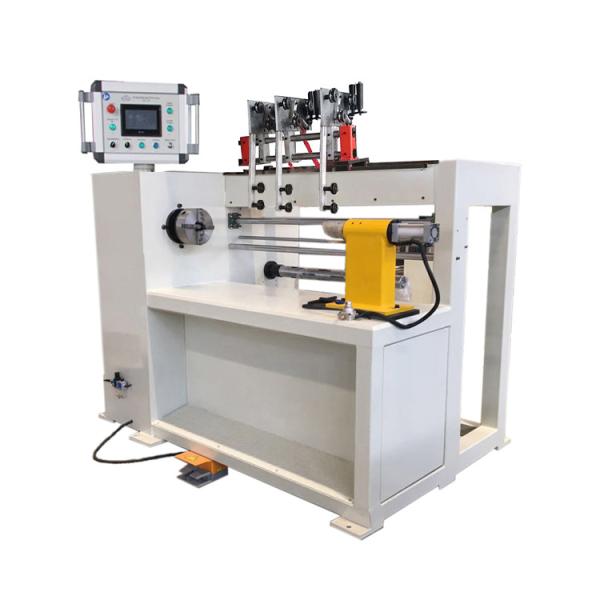

Fig 1: Transformer coil winding machine ZPX150-3's full view
Fig 2:Transformer coil winding machine ZPX150-3's back view
|
