| Categories | Thermal Security Camera |
|---|---|
| Brand Name: | GST |
| Model Number: | C1212M MWIR |
| Certification: | ISO9001:2015; RoHS; Reach |
| Place of Origin: | Wuhan, Hubei Province, China |
| MOQ: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Technology: | Infrared Thermal Imaging |
| Application: | System Integration |
| Resolution: | 1280x1024/12μm |
| Spectral Range: | 3.7~4.8μm MW |
| NETD: | ≤20mK (F2/F4) |
| Size: | 149x58.5x71mm |
| Company Info. |
| WUHAN GLOBAL SENSOR TECHNOLOGY CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

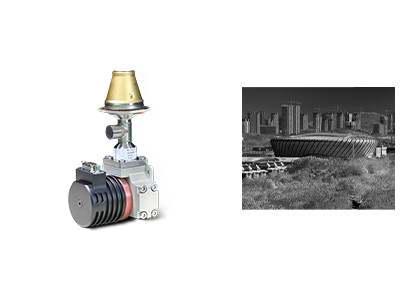

1280x1024 / 12μm MCT Cooled Infrared Detector with Fast Integration into Surveillance Camera Applied to Security Monitoring
C1212M MWIR is one of the HgCdTe/MCT cooled mid wavelength infrared detector developed by Global Sensor Technology (GST). It is a combination of high definition, high performance and high reliability.
The C1212M MWIR MCT Cooled Infrared detector offers four times as many pixels in the same active image area as conventional 640x512 products. With large array 1280x1024 resolution it can realize wider field of view and provide more image details. The reduced 12µm pixel size offers better spatial resolution and match shorter optical lens focus to achieve the same range mission.
C1212M MWIR HgCdTe infrared detector is an ideal choice for thermal imaging applications that require superior long range performance and image details recognition in a low size, weight, and power package.
- Resolution: 1280x1024
- Pixel Pitch: 12μm
- High Sensitivity
- Compact Design
- Lightweight
- Low Power Consumption
| Model | C1212M MW |
| Material | MCT |
| Resolution | 1280x1024 |
| Pixel Pitch | 12μm |
| Spectral Range | 3.7μm～4.8μm MW |
| Working Mode | Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | 6.75Me-/4.8Me-(ITR) 5.25Me-/3.3Me-(IWR) |
| Dynamic Range | ITR Mode≥80dB IWR Mode≥76dB |
| Number of Output | 4 or 8; Up to 20Mpixel/s per Output |
| NETD | ≤20mK (F2/F4) |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Cryocooler Type | RS058F |
| Steady Power Consumption | ≤7W |
| Max Power Consumption | ≤17W |
| Power Supply | 24V DC |
| Cooling Time | ≤6min |
| Weight | ≤600g |
| Dimension (mm) | 149x58.5x71 |
| Working Temperature | -45°C ~ +71°C |
The C1212M MWIR cryogenically cooled infrared detector is suitbale for the long range monitoring system and complex
environments, such as scarcely populated area, 24/7 all weather
monitoring, harsh weather place.
1. What is infrared thermography?
Thermography is a new and effective technology of non-invasive
diagnostic method based on object surface temperature detection.
The infrared (IR) radiation emitted from an object is recorded and
visualized in the form of a temperature distribution map.
2. What can the infrared thermography be used for?
The infrared thermal image can be used to perform home inspections,
determine structural defects, electrical faults, mechanical faults,
physiological changes in people & animals and much more.
3. What are the advantages of infrared thermography?
For the non-destructive test, it is simple to test and quick to
response without damage, which results in saving costs, increasing
work efficiency, reducing manpower and equipment depreciation.
For the medical thermography, it is very efficient to find the
hidden problems in human body, 100% safe without radiation and
pain, which is an ideal tool for early health screening
|
