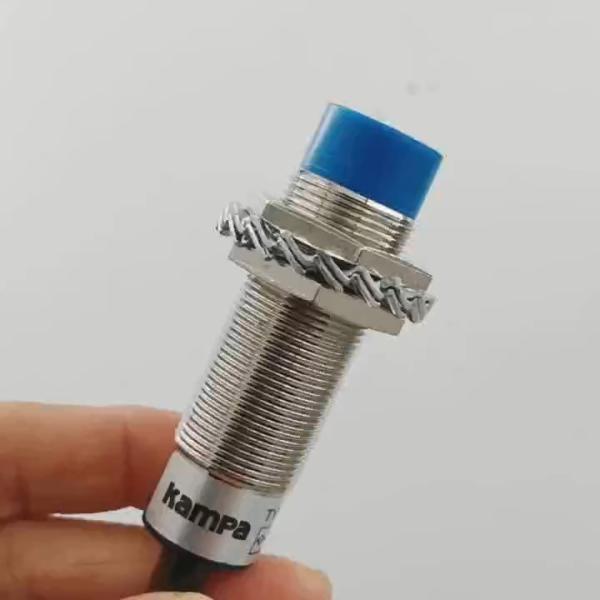

| Model Number: | CM18-3008NA |
| Type: | Capacitive Proximity Sensor |
| Place of Origin: | Zhejiang, China |
| Brand Name: | KAMPA |
| Usage: | Position Sensor |
| Theory: | Capacitive Sensor |
| Output: | Switching Transducer |
| Description: | Capacitive Proximity Sensor |
| Product name: | Capacitive Proximity Sensor |
| Model: | CM18-3008NA |
| Wire type and power: | DC 3-wire 6-36VDC |
| Sensing side diameter: | M18 |
| Sensing distance: | 0-8mm |
| Control output: | NPN NO |
| Response frequency: | 50Hz |
| Current consumption: | Max.15mA |
| Detection object: | conductor and dielectric |
| Material: | Metal |
| Packaging Details: | standard export carton packing. |
| Port: | Ningbo |
| Supply Ability: | 10000 Piece/Pieces per Month |
| MOQ: | 100 Pieces |
| Price: | $5.00/Pieces 100-499 Pieces |
| Company Info. |
| Yueqing Kampa Electric Co., Ltd. |
| View Contact Details |
| Product List |
| Product name | Proximity Sensor |
| Type | Capacitive Type |
| Place of origin | Zhejiang,China |
| Brand name | KAMPA |
| Usage | Position Sensor |
| Model number | CM series |
| Type | Non-flush type / Flush type |
| Material | Metal |
| Detection object | conductor and dielectric |
| Sensing side diameter | M18 |
| Voltage DC/AC | DC6-36V; AC90-250V |
| Consumption current | DC<15mA; AC<10mA |
| Output current | DC: 200mA; AC: 300mA |
| Output voltage drop | DC<3V; AC<7V |
| Response frequency | DC:50Hz; AC:20Hz |
| Insulation resistance | 50MΩ |
| Detection distance | 0-5mm/0-8mm |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Protection | IEC standard IP65 |
| Detection distance: | 0-8mm | |||||
| 30: DC6-36V | NPN | NO | CM18-3008NA | |||
| NC | CM18-3008NB | |||||
| NO+NC | CM18-3008NC | |||||
| NO | CM18-3008PA | |||||
| NC | CM18-3008PB | |||||
| NO+NC | CM18-3008PC | |||||
| NO | CM18-2008A | |||||
| NC | CM18-2008B | |||||
| Detection distance: | 0-5mm | |||||
| 30: DC6-36V | NPN | NO | CM18-3005NA | |||
| NC | CM18-3005NB | |||||
| NO+NC | CM18-3005NC | |||||
| NO | CM18-3005PA | |||||
| NC | CM18-3005PB | |||||
| NO+NC | CM18-3005PC | |||||
| NO | CM18-2005A | |||||
| NC | CM18-2005B | |||||







|   |
