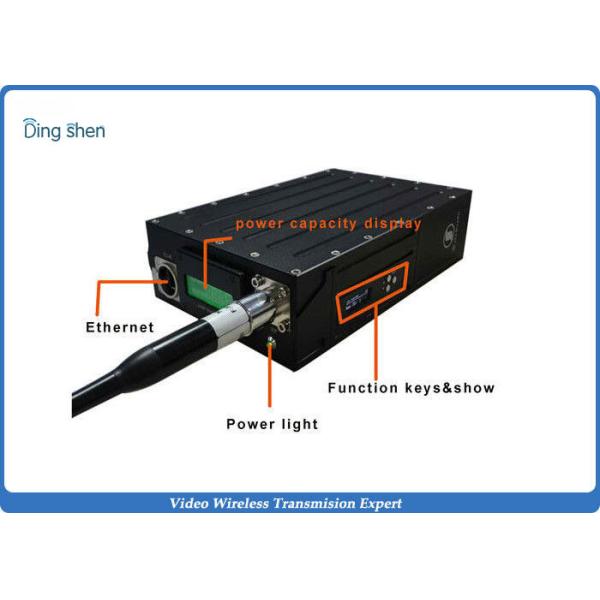

RS485 Network Video Transceiver Two Way Wireless HD Transmitter

Data 50km Remote Control Real Time Wireless Video Drone Transmitter other security & protection products

ultra-low latency H.264 COFDM HD portable wireless video transmitter, adopted the 4th generation multi-carrier modulation technology and highly efficient/ innovative H.264 compression coding. Greatly improve coding efficiency,decrease coding delay, optimize algorithm, anti-bit error rate and improve image quality, which use the lowest bit rate to achieve the best image compression.

Used in special government emergency use, such as: police, fire, maritime coastal defense, waterways, ports, digital urban management and other departments.


Features:

1. Advancement: TDD-COFDM channel modulation technology, with ultra-wideband, fully transparent transmission.
2. Security: private network, private communication transport protocol, the only synchronization code, AES encryption.
3. Flexibility: transparent transmission of IP data channel, supports multi-user access.
4. Scalability: all-digital network, is compatible with all IP data transmission equipment.


Special Features:


(1) TDD-COFDM technology;
(2) Full duplex working mode
(3) User can modify the all parameters;
(4) LCD sceen shows the working signal strength indication;
(5) Built in with Ethernet & RS-485/RS232/RS422 data ports;
(6) Baud rate can up to 921600bps.
(7) AES128 encryption and customized key password.
(8) Real time transfer;
(9) Available frequency:330-530MHz ;

Advantages:

1. Provid 6.5Mbps max video&data stream,adaptive dynamic allocation technique;
2. Support protocol PTP &PMD network technology;
3. Support non-line of sight(NLOS) high speed mobile transmission
4. Standard RJ45 ethernet interface to transmit/receive video&data signals at the same time;
5. Support high standard military grade application

Technical performance:

• Multi-frequency network base stations, base station with a single frequency network building, the same frequency network with two-way communication, high spectrum efficiency;
• Flexible allocation of channel resources to achieve point-to-point, point-to-multipoint, multipoint-to-multipoint two-way communication;
• Multiple channel modulation bandwidth and a variety of modulation mode function;
• Flexible TDD slot allocation model to meet the single-frequency multi-user access, save the spectrum, the same power to reduce power consumption;
• Spectrum sensing, perception slot, upstream bandwidth sensing function;
• Strong diffraction ability and anti-multipath capability, excellent diffraction and penetration;
• High-sensitivity receiver, can still ensure BER <10E-5, frame error rate <1% when the reception level is -110dBm;
• Powerful error correction capability;
• Low PAPR, high power amplifier efficiency, low power consumption;
• Can support to transmit video audio and etc signals synchronous,high speed and real time.
• Can work well at the velocity of 600km/h.
• Digital signal processing, a strong system of confidentiality, stability and reliability of wireless broadband technology ASE128/256bits;

System performance:

1. Use TDD time division multiplexing technology with COFDM modulation system solution;
2. The device comes with LCD panel display parameters,adjustable parameters;
3. On the LCD sceen shows the working signal strength indication;
4. Can be 1 or 2 ethernet ports and RS485/RS232/RS422 data port;
5. With AES128 encryption and customized key code.
6. Super low delay,within 50-80ms;
7. Transmit rate up to 6.5Mbps; Video and data occupy the same channel;
8. Available frequency:330-530MHz,have to choose 100MHz space among of the range;

Specifications:

Technical parameters:

Application:

Dingshen is a leading of High-tech global enterprise in developing and manufacturing. Company established in 1998 and located in Shenzhen China. Specializing in the provision of advance wireless microwave communication system to the broadcast, UAV, public surverillance and defense industries. By continuously investing in innovation and combining exceptional products and services, Kimpok offers superior solutions that enable our customers to do their jobs even more effectively.

Dingshen has a very strong technical team and R&D capacity. we dedicated to developing the high level wireless mobile video surveillance system for application of Law enforcement and military, field forces, radar, R/C helicopter, security & protection, government departments, military, security systems, oil field, Vessel, large mines, factories and so on.

Last for 15 years, Dingshen continually concentrate on researching and innovating in the wireless high speed mobile video transmission industry based in LOS/NLOS environments,especial for Unmanned aircraft vehicle(UAV), airborne area and soldier man-pack areas. COFDM modulation and TDDworking mode transmitter/receiver are our demonstrable advantages.All the products production must be in very strict quality management by using US original (HP) spectrum analyzer and Germany (Rohde & Schwarz) Network Analyzer.

The transmitter and receiver are with Anti-jamming, high quality image, long range transmission distance, and have a highly appraise in this area. Company’s developing and long-term programming is the key way for leading us to be the leader at this area, we always believe we can do it. We will continually concentrate on researching and innovating in the wireless microwave transmission industry.

Welcome to tell use your needs, we will try to meet your requirements and custom made a special device for you.” Your support and suggestions are our motivation”. We aim to provide our users worldwide exclusive advanced wireless videography system.
