Home > Glass Production Machinery >

jinan laminated tempered insulating glass insulating glass equipment

Categories Insulating Glass Production Line
Brand Name: Lijiang
Model Number: LJBZ 2025
Certification: CE
Place of Origin: China
MOQ: 1 Set
Price: 65000USD/Set
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 12Set / Day
Delivery Time: 15-40 working days
Packaging Details: Woodencase ect
Name: jinan laminated tempered insulating glass insulating glass equipment
Power Supply: 380V,50HZ or customized
Washing Speed: 2-10m/min
Work speed: 15-45 m/min, 5-10 s/pcs, 0~45m/min
Condition: New
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

jinan laminated tempered insulating glass insulating glass equipment

jinan laminated tempered insulating glass insulating glass equipment

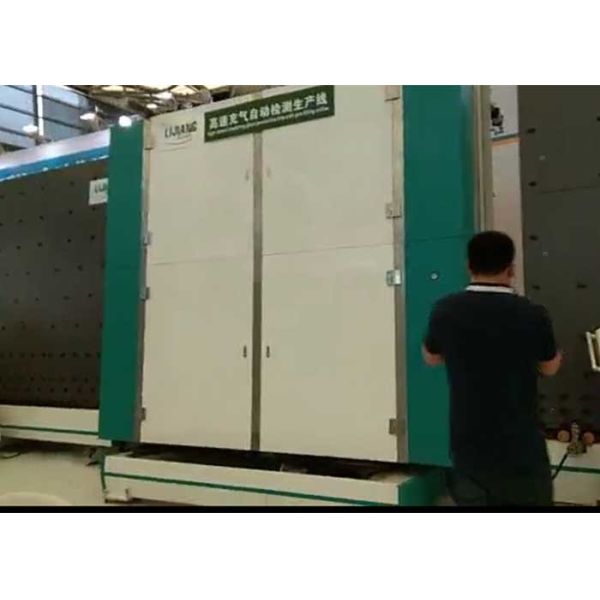

The insulating glass machine can perform the following functions: Glass cleaning, Aluminum frame installation, normal double glazing, usually three glazing, shaped glass and double pressing of double glazing.

The glass insulation machine is a special equipment in the production of aluminum strip insulating glass, which has the advantage of small footprint, high efficiency, reliable operation and convenient maintenance.

glass production line insulating glass machine vertical glass washing machine insulated glass equipment

Advantage:

1, Europe design concept, easy and intelligent operation;

2, world-famous brands of key elements, guaranteed stable operation and long service life;

3;

4, large scale glass processing, a variety of models and customization available;

5, large output capacity, 1000pcs production in one working day;

6, Work for double-layer, three-layer, stepped sheet and insulating glass with an unusual shape;

7, Automatic filling with argon air with gas during the glass sheet assembly process;

8, PLC control system, touch screen operation;

Electrical parameters

NAMEORIGINBRAND
Transfer motorGermanySIEMENS
Brush motorGermanySIEMENS
Servo motorGermanySIEMENS
PLCGermanySIEMENS
Low voltage electrical applianceGermanySIEMENS
Frequency converterGermanySIEMENS
Micro SwitchTaiwanTEND
Button and indicator lightFranceSCHNEIDER
Touch screenTaiwanWEINVIEW
Intermediate relayJapanOMRON
Water pumpChinaLINGXIAO
GuideTaiwanHIWIN
Pneumatic ComponentsTaiwanAIRTAC
Electric gaugeChinaMIRAN
Photoelectric switchKoreaAUTONICS
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD

Power Supply380V,50HZ or customized
Total Power40 KW
Washing Speed2-10m/min
Max. working speed45m/min
Min.Glass size450*280mm
Max. Glass size

2500*3200

2500*4500(second pressing)

Washing glass thickness3-15mm
Max. Insulating glass thickness50mm
Weight8000kg
Dimension (L*W*H)23600*3500*3700mm

Company Information


About Our Company
Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!

glass production line insulating glass machine vertical glass washing machine insulated glass equipment

Quality jinan laminated tempered insulating glass insulating glass equipment for sale
