| Categories | Tianma TFT |
|---|---|
| Brand Name: | Tianma |
| Model Number: | TM035HBHT1 |
| Certification: | ISO9001 |
| Place of Origin: | Japan |
| MOQ: | 1PCS |
| Payment Terms: | T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW |
| Supply Ability: | 2000PCS |
| Delivery Time: | Working Day:1-3 Days |
| Packaging Details: | Package Box:648 pcs / box Size:544×365×250 mm (L×W×H) |
| Price: | 120USD |
| Size: | 3.5 Inch |
| Resolution: | 240*400 |
| Luminance: | 80 cd/m² (Typ.) |
| View Direction: | 6 o'clock |
| Viewing Angle: | 40/45/55/40 (Typ.)(CR≥10) |
| Support Color: | 262K |
| Interface Type: | Parallel RGB (1 ch, 6-bit) + SPI , 50 pins FPC |
| Contrast Ratio: | 150:1 (Typ.) (TM) 6.5:1 (Typ.) (RF) |
| Touch Panel: | 4-wire Resistive Touch |
| Environment: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

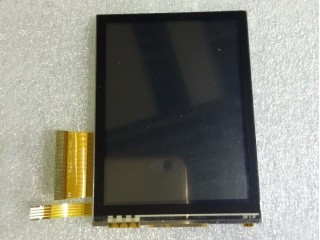

3.5 Inch 240*320 TM035HBHT1 With 4-wire Resistive Touch For Handheld & PDA
1. Main Information:
The TM035HBHT1 is a 3.5 inch diagonal a-Si TFT-LCD display panel
product from Tianma Microelectronics Co., Ltd. with an integral
WLED backlight system, without backlight driver, touchscreen 4-wire
Resistive Touch. It features an operating temperature range of -20
~ 60°C , a storage temperature range of -30 ~ 70°C . It's general
features are following: Portrait type, With Touch, Transflective,
WLED Backlight , Left side FPC (17.00mm length). Based on its
features, this model be applied to Handheld & PDA etc.
2. TIANMA TM035HBHT1 Mechanical Details:
| Pixel Features : | Pixel Format | 240(RGB)×320 [QVGA] | Dot Pitch | 0.0745×0.2235 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2235×0.2235 mm (H×V) [113PPI] | |
| Mechanical Size : | Display Area | 53.64×71.52 mm (H×V) | Bezel Area | - |
| Outline Dim. | 64×85 mm (H×V) | Outline Depth | 4.13±0.3 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 3:4 (H:V) | Shape Style | - | |
| Touch Screen : | Touch Points | 1 point | TP Signal | - |
| TP Controller | Without touch controller | Touchscreen | 4-wire Resistive Touch | |
| Other Features : | Weight | TBD | Surface | Hard coating |
3. TIANMA TM035HBHT1 Optical Details:
| Basic Information | Brightness | 80 cd/m² (Typ.) | Contrast Ratio | 150:1 (Typ.) (Transmissive) 6.5:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | 40/45/55/40 (Typ.)(CR≥10) | Optical Mode | ECB, Normally White, Transflective | |
| Viewing Direction | 6 o'clock | Response Time | 35 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.301; Wy:0.321 | Color Numbers | 262K (6-bit) |
| Color Temperature | 7272K | White Uniformity | - | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
| 3D Type | - | Reflectance | 7% (Typ.) |
4. TIANMA TM035HBHT1 Backlight Details:
| Back-light Features: | Lamp Shape | 1 string | Lamp Type | WLED | Life Time | 10K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S1P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 19.2V (Typ.) | Current Input | 20mA (Typ.) | ||
| Consumption | 384mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
|
