Epon Olt Sfp Fiber Optical Transceiver 1000base-Px20 1.244 Gbit / S Upstream

Overview

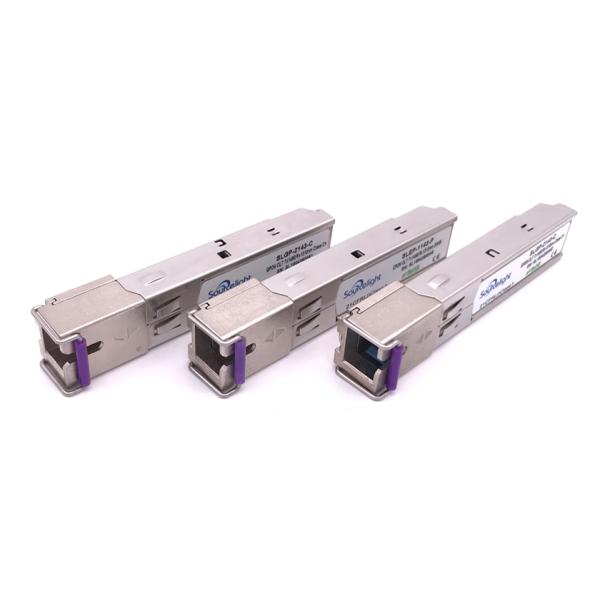

The EPON OLT transceiver is the high performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver. It is optical line terminal (OLT) for IEEE Std 802.3ah™ -2004 1000BASE-PX20. The optical transceiver is compliant with the Small Form- Factor Pluggable (SFP) Multi-Source Agreement (MSA).

The transmitter section uses a 1490nm DFB LD with automatic power control (APC) function and temperature compensation circuitry to ensure stable extinction ratio over all operating temperature range. and is Class 1 laser compliant IEC825 and CDRH standards The receiver has a hermetically packaged APD-TIA (trans-impedance amplifier) pre-amplifier and a limiting amplifier with LVPECL compatible differential outputs.

Features

• Single Fiber with single mode SC receptacle
• 1490nm continuous-mode 1.25G/s transmitter with DFB laser
• 1310nm burst-mode 1.25G/s receiver with APD-TIA
• Single 3.3V power supply
• LVPECL compatible data input /output
• Burst mode received signal strength indication output
• Support more than 24dB dynamic range
• Complies with IEEE Std 802.3ah™ 1000BASE-PX20
• Digital diagnostic interface compliant with SFF-8472
• Complies with RoHS directive (2002/95/EC)
• Operating case temperature:
• Standard : 0 to +70°C

Parameter

• Gigabit Ethernet Passive Optical Network (EPON) OLT
