| Categories | QSFP Optical Module |
|---|---|
| Brand Name: | Sourcelight or OEM |
| Model Number: | QSFP 40GBASE LR4 |
| Certification: | CE/FCC/RoHS/TUV/UL |
| Place of Origin: | Shenzhen,China |
| MOQ: | 1PCS |
| Price: | Get Latest Price |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200PCS Per Week |
| Delivery Time: | Shipped in 1 days after PO confirmed |
| Packaging Details: | 10PCS or 20PCS Plastic trays; 1pc Independent Box. |
| Product name: | QSFP 40GBASE LR4 MODULES |
| Datarate: | 11.2 Gbps per CH |
| Wavelength: | cwdm 1270/1290/1310/1330nm |
| Distance: | 10KM SMF |
| DDM DOM: | HAVE |
| Connector: | Duplex LC/UPC |
| Company Info. |
| Sourcelight Technology Limited |
| View Contact Details |
| Product List |

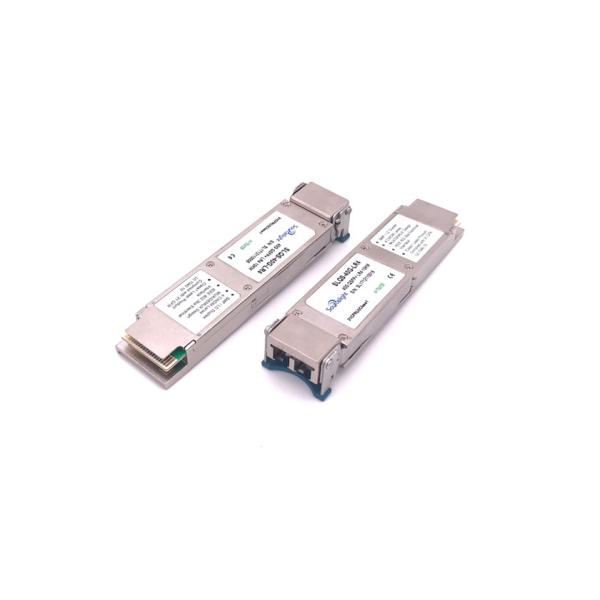

40gbase Qsfp Lr4 Fiber Optical Transceiver Module 10km On Smf Lc Connector
Overview
40G QSFP LR4 is The sourcelight technology enables the integration
of 4 transmitters, 4 receivers and an optical MUX/DeMUX into a
small form factor package.
The optical connectivity is based on two SMF LC connectors, one for Tx and one for Rx. The Tx and Rx each consist of 4 10GB/s CWDM channels.
The QSFP-LR transceiver is designed for applications based on the
IEEE 802.3ba 40BASE-LR4 standard of up to 10km reach.
Features
Parameter
| Package (Form Factor) | QSFP+ LR4 10KM SMF |
| Data Rate (typical) | 11.2 Gbps/CH |
| Centre Wavelength | 1270/1290/1310/1330nm CWDM |
| Distance | 10km ON SMF |
| DOM DDM | YES |
| Transmitter | 4 CWDM DFB |
| Receiver | 4CH PIN |
| TX Output Power | -7~+2.3 (dBm) |
| RX Sensitivity | -11.5 (dBm) |
| Temperature | 0°C~70°C |
| Voltage Supply | 3.3v (typical) |
| Optical Connector | Duplex LC UPC |
Application
40G QSFP module
| Item No | Data Rate | Distance | Wavelength | Connector | Fiber Type |
| QSFP-40Gb-SR4 | 40G/ps | 100M | 850nm | MTP/MPO | MM |
| QSFP-40Gb-LR4 | 40G/ps | 10km | 4 CWDM | LC | SM |
Competitive advantage
1. Excellent quality and 3 years warranty
2. Full compatible (HP/Extreme/Juniper/H3C…)
3. OEM/ODM Customized label
4. Keep stock,Fast delivery
|
