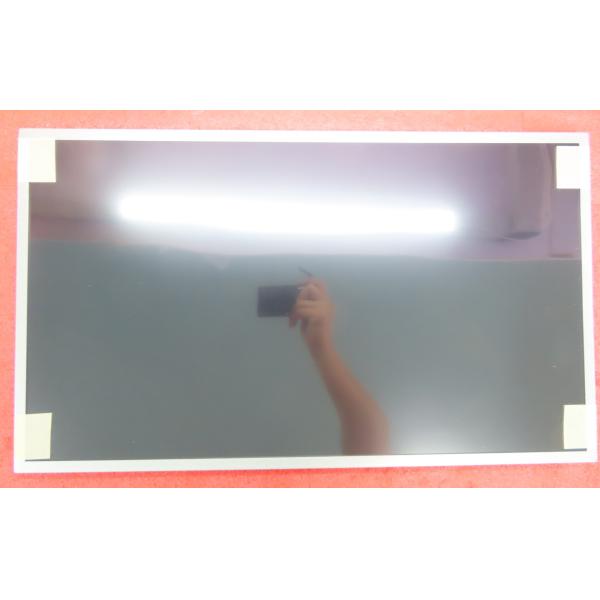

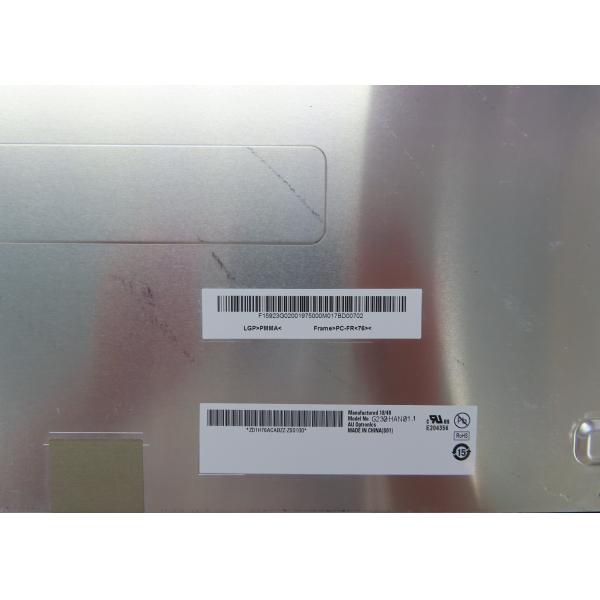

0.2652mm Pixel Pitch 23 Inch LCM G230HAN01.1 AUO LCD Panel

0.2652mm Pixel Pitch 23 Inch LCM G230HAN01.1 AUO LCD Panel

Description Of AUO LCD Panel

G230HAN01.1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. For more latest product detail of G230HAN01.1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with AUO or it's distributor.

Feature Of AUO LCD Panel

1) Operating Temperature:0 ~ 50 °C

2) Storage Temperature:-20 ~ 60 °C

3) Color Temperature:6485K

4) Luminance:300 cd/m² (Typ.)

5) Work Mode:AHVA, Normally Black, Transmissive

6) Power Consumption:5.9/6.4W (Typ./Max.)

7) Physical Type:Connector

8) Contrast Ratio:1000:1 (Typ.) (Transmissive)

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

Signal Electrical :	Input Voltage		Input Current			Power Consumption
	5.0V (Typ.)		1.17/1.27A (Typ./Max.)			5.9/6.4W (Typ./Max.)
Interface Features :	Signal Type			Physical Type		Interface Position
	LVDS (2 ch, 8-bit)			Connector
Interface Detail :	Brand Name	Model Name	Amount	Pins	Pin Pitch	Pin Configuration
	JAE	FI-XB30SSRLA-HF16	1 pcs	30 pins	1.0 mm	LVDS-30P2C8B-160C

Application Of AUO LCD Panel G230HAN01.1

1. Security Cameras

2. Display Unit

3. Cash register equipment

4. On-board display

5. Medical Equipment

Advantage Of AUO LCD Panel

>> Quality ensurance
100% AUO original and brand new!

warranty :12 months !You can enjoy the real panels directly from AUO factory;

>> Packing ensurance
all the products are in original package from original factory directly, and all the packages have labels andserial number!

>> Delivery ensurance
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !

Who we are:

      N&S ELECTRONIC CO., LTD established in year 2010. Our headquarters located in Hong Kong and branch office in Shenzhen, Singapore, Malaysia and Canada. We are professional distributor on LCD panels with our own warehouse and stock. Our goal is to provide worldwide supply chain solution based on integrity.

What we do:

      As the leading LCD distributor in China, we are strong at EOL panels and hard to find panels of famous brands such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.

     Our products lines are widely used on medical apparatus, industrial control facilities, portable electrical impedance measurement apparatus, digital video camera display, vehicle equipment, aerospace equipment.

     Our products mostly cover small sizes, like 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc. Most of them are original factory sealed carton packing. Moreover, we will do the brightness inspection of them by testing board.

Our Advantages:

       LCD panels are sourced directly from manufacturers, OEM/CM's and worldwide business partners spanning five continents that include 40 COUNTRIES or AREAS, United States, Italy, Singapore, Korea, Taiwan, Germany, Thailand, Malaysia, Japan, etc. There are more than 540 enterprises. With our strong sourcing team and sufficient stock in our warehouse, and our professional Quality Control team and professional testing instruments, we can offer reliable quality panels at competitive price.

     N&S will be your powerful partner on LCDs in China. Here we are to quote your need.
