| Categories | Mini Pallet Stacker |
|---|---|
| Brand Name: | Sinolift |
| Model Number: | FP |
| Certification: | CE,ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 5000 sets/mouth |
| Delivery Time: | 15 days |
| Packaging Details: | Sandard Export Package |

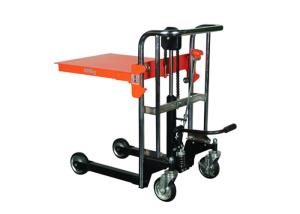

| Product Name: | FP Mini Stacker With Unique Design Combining Both the Lifting and Stacking Function Capacity 400Kg |
| Rated Capacity: | 400kg |
| Max. Height: | 1630mm |
| Lifting Height: | 1300mm |
| Min. Platform Height: | 200m |
| Max.Width: | 590mm |
| Platform Length: | 650mm |
| Platform Width: | 550mm |
| Net Weight: | 70Kg |
| Warranty: | 1 year |
| After Service: | On-line service,Spare parts |
Feature:
The unique design combine both the lifting and stacking function.
Enables one person to handle difficult lifting and moving jobs.
Collapsible foot pedal ensures lifting movement comfortably and
smoothly.
Equipped with a overload protection valve.
Hand push drive.
Hard chromium plated frame.
Two frame rollers and two steering rollers ensures a stable and
safe operation
Conforms to En1757-1.
Specification:
| Model | FP0485 | FP0412 | FP0415 | |
| Capacity Q | kg | 400 | 400 | 400 |
| Max. height h1 | mm | 980 | 1330 | 1630 |
| Lifting height(h3) | mm | 650 | 1000 | 1300 |
| Min.platform height h13 | mm | 200 | 200 | 200 |
| Max.platform height h3+h13 | mm | 850 | 1200 | 1500 |
| Max.Width | mm | 590 | 590 | 590 |
| Platform length | mm | 650 | 650 | 650 |
| Platform width | mm | 550 | 550 | 550 |
| Rear roller | mm | Φ150x40 | Φ150x40 | Φ150x40 |
| Load roller | mm | Φ150x45 | Φ150x45 | Φ150x45 |
| Weight | kg | 70 | 76 | 86 |
|   |
