Clause 25.15 Electrical Test Instruments Power Cord Anchorage Pull Force Torque Tester

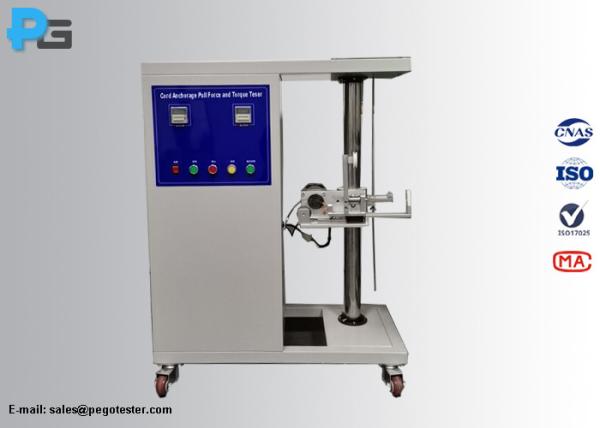

IEC60335-1 clause 25.15 Power Cord Anchorage Pull Force and Torque Tester

1. Description

The cord anchorage pull force and torque tester is designed according to the standards of IEC60598, IEC60335-1 clause 25.15, GB7000, GB2486 and etc., It is used to test tension and torque on the terminals of appliances provided with a supply cord and household appliances intended to be permanently connected to fixed wiring with flexible cords, it shall not be possible to push the cord into the appliance to such an extent that the cord or internal parts of the appliacne could be damaged.

The test method is to make a mark on the cord at a distance of approximately 20mm from the cord anchorage or other suitable point, and then apply steady pull force to cord for 25 times with a speed of 1 times/s. Then apply a torque as close as possible to the appliance for 1 minute. After the test, the displacement of the cord marking position shall not exceed 2 mm.

2. Parameter

Pull force and torque Table

3. COMPETITIVE ADVANTAGE
1). PEGO is professional on electrical lab testing equipment, our goal is to provide our customers with better price, better quality and better service.
2). Customized Service: We can help our customers to design and develop new equipment according to their requirement. We are flexible and capable Supplier.
3).Excellent Quality: 12 months warranty, 100% guarantee test before delivery. And all our products can pass the third-lab calibration which is authorized by ISO17025.
4). After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.
5). Quick Delivery: Our company provides just-in-time delivery, and our freight forwarder can provide transportation services at the most reasonable price to solve your worries.
6). Prompt Response to Customers: we promise to reply our customers within 24 hours

Pego Electronics is founded by PEGO GROUP in 2011, a professional high-tech enterprise engaged in developing, marketing and service for electronic test equipment. Our business scope includes IP testing equipment, dust chamber, pendulum and vertical impact testing equipment, flame test apparatus,  glow wire test apparatus, needle flame tester, tracking index tester, iec61032 IP code probes, IEC60061-3 gauges for lamp caps and holders, UL498/VDE0620/BS1363-1 gauges for plug and socket, ground resistance tester, insulating resistance tester, hipot tester, temperature chamber, spring hammer,  tumbling barrel test equipment, test vessels, ESD gun, surge generator, goniophotometer, integrating sphere, spectroradiometer, power supply and etc. Besides, we can provide customized service.

Nowadays, we have several production lines in China, we imported advance technology and machines to make the gauges to keep high precision, and use the world famous-brand components to make the equipment more reliable. We promise the customers can get the high quality products during the shortest lead time, and we can provide the third-lab calibration certificates if customer request. The Pego’s products have been sold to the world wide, and widely used in labs, production line, QC and R&D departments with the features of high precision, simple operation, humanization design and good performance.

To Provide better user experience with better quality and better price is the motto of Pego. With the growth of test items, PEGO hope to grow with our users, and search for better test solution for our users.
