| Categories | Solar Tracker Slew Drive |
|---|---|
| Brand Name: | HangTuo |
| Model Number: | VE9 |
| Certification: | CE, ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | USD 248~380/ pc |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Delivery Time: | 15~45 days |
| Packaging Details: | plywood box |
| Model: | VE9 |
| Self-lock: | Yes |
| Certificate: | ISO9001,CE |
| Warranty: | 5~10 years |
| Material: | 50Mn,42CrMo |
| Application: | Industrial |
| Color: | RAL6001 |
| Accuracy: | ≤0.1 |
| Company Info. |
| Changzhou Hangtuo Mechanical Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

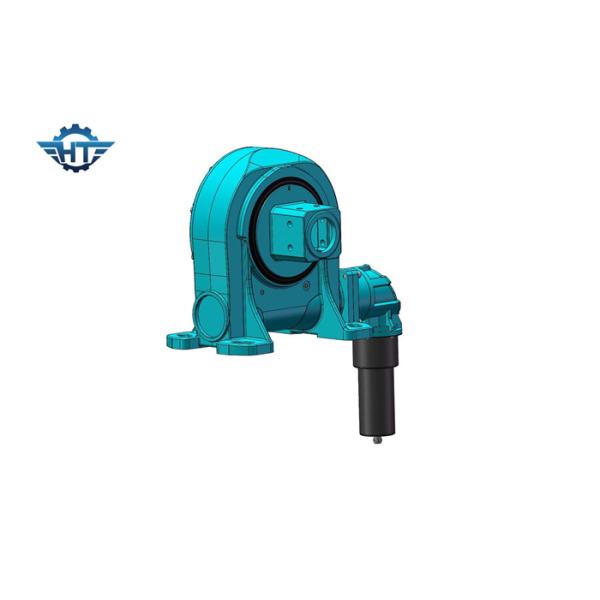

Ve9 Solar Slewing Drive With High Maximum Torque For Single Axis Solar Tracker
Product Description
The slewing drive is a reduction transmission mechanism integrated with a driving power source. The rotation can be in a single axis, or in multiple axes together. It is a general-purpose reduction transmission mechanism that integrates the functions of rotation, deceleration, and having a simple structure and convenient manufacture and maintenance at the same time.
Performace of VE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Features
Slewing drive can realize unlimited circumferential rotation and speed reduction, and can withstand larger axial force, radial force and overturning force. It enjoys advantages of high accuracy, compact structure and large carrying capacity. It is designed, tested and used for a 30-year field life.
Applications
Slewing drive application are usually found in such as: wind turbines, heavy load transporters, solar trackers, harbor cranes, hydraulic equipment, crane steering mechanisms, automation systems, heavy load manipulators, yaw and pitch control tables.
|
