High Brightness P3 SMD Indoor Full Color LED Display with White Balance Brightness of 2000cd/m2

Categories Indoor Full Color LED Display
Brand Name: SCXK
Model Number: smd -p3
Certification: CB/CE/ROHS/FCC/ISO/UL
Place of Origin: CHINA
MOQ: 9sqm
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5300 sqm month
Delivery Time: 6 working days
Packaging Details: wooden case,flight case,it is up to you.
Display Function:: Video
Usage:: Indoor
Brightness:: 800-1000cd/sqm
Led Encapsulation: SMD2121
Color Depth: 16bit
Item Name: Led Full Color Display
High Refresh Rate: ≥1920Hz
Feature: light weight and portable
Brightness Control: Manual/Automatic
Lamp Power: 0.72W
Power Consumption: Max 800W/m²
Best Viewing Angle: 2m~10m
Life Time Way: ≥100,000hours
Leds: nationstar
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

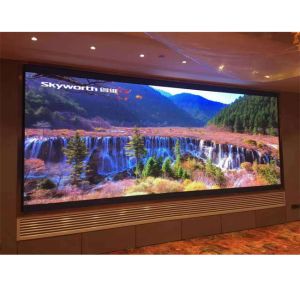

High Brightness P3 SMD Indoor Full Color LED Display with White Balance Brightness of 2000cd/m2

SCX LED High resolution screen full color p3 smd indoor led module smd p3 led screen display

576x576mm portable aluminum panel high definition P3 SMD 2020 full color indoor stage led concert screens

1. Error detection and monitoring:it can monitor the inner temoerature,voltage,cooling fans etc and error detection automatically.

2. Energy saving:low electric current,high-brigh lamps,equipped with PFC swithing power supply,save 30% electricity.

3. Color correction:support dot-to-dot correction,guarantee the consistence of LED color and brightness,No chromatic aberration for new screens3..

4.. Good LEDs:use DIP346 LEDs,it has excellent performance in antistatic ability and UV protection;Waterproof grade IP65,all weather available.

5. Dual back-up:both power supply and system dual back-up are optional,reliable performance.

6. High refresh rate,high gray level:it can reach 16bit by using PWM driving IC,refresh rate is more than 1000HZ,
the gray level is still high even under the condition of low brightness



♦ Product specification

indoor SMD P3
Lamp size2121
Resolution/mm3
Pixel configurationRGB 3 in 1
Pixel density/pixels/m²111111/m²
Module resolution64x64
Module size/mm192x192mm
View distance≥3m
Single point brightness adjustCan be added
Single point color adjustCan be added
White balance brightness>2000cd/㎡
Color temperature6500K-9500K
Horizontal view angle120(degrees)
Vertical view angle60(degrees)
Signal Process bit10 or 14 bit
Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distancesInternet cable:100m, multimembrane:500m, monofilm:5km
Driving modeConstant driving current
Scanning mode1/8
Frame rate60Hz
Refresh frequency>3000Hz
Control modeComputer synchronous
Brightness adjusted rangeManual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point<1/10000
Working hours≥72hours
Mean Time Between Failure>5000hours
Life time100000hours
Life-all-white(brightness halving)50000hours
Environment temperature rangeOperating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡<900W
Average power:/㎡<300W
Self-check technologyLED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoringRemote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environmentWindowsNT,Windows1999,WindowsXP
Luminous point width between centresDeviation<3%
Brightness uniformity<10%
Color uniformity(chromaticity coordinate)±0.003
Power supply requestAC85-264V(50Hz-60Hz)
Contrast(1000:1)
System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)working:10-95%
Humidity(storing)storing:10-95%

Our case



♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.

Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.

Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.


FAQ


Q1: Are you a trading company or manufacturer?

A1: Focus Bell is a professional LED display manufacturer, we have our factory and based on the High-tech Park. We have more than 5 years experience in LED display industry.

Q2: What is your control system? Is it easy to use?

A2: We use Novastar controlling system. Support APP/Phone/Wifi/PC/Cloud and other types of terminals to control videos. And we will choose the best processor and system for the screen to make it easier and convenient.

Q3: What is your service? How could we get a screen?

A3: 1. Getting your requests and find the best solution for you.

2. Arrange fast delivery and track the order.

3. Guide you how to install the screen and software.

4. Track your after-sale use and supply the best service for you.


Q4: How about the delivery time?

A4: Commonly 10-25 days after we receiving your advanced payment. If there is special delivery time, it must be the special quantity and items. We will inform you in advance.
