| Categories | Diesel Forklift |
|---|---|
| Brand Name: | LTMG |
| Model Number: | FD60 |
| Certification: | CE, ISO |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | USD 19448 PER SET |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300 units per month |
| Delivery Time: | 25days |
| Packaging Details: | nude packing, fix in container |
| Type: | Powered Pallet Truck |
| Overall Dimension: | 3550*1995*2500mm |
| Engine: | Chinese or Isuzu |
| lifting capacity: | 6000kg |
| Battery Voltage: | (12V/80Ah)x2 |
| lifting height: | 3m, 6m, for your choose |
| warranty: | 1 year or 2000 working hours |
| packing: | fit in 20ft container |
| Company Info. |
| Xiamen LTMG Co., LTD |
| View Contact Details |
| Product List |

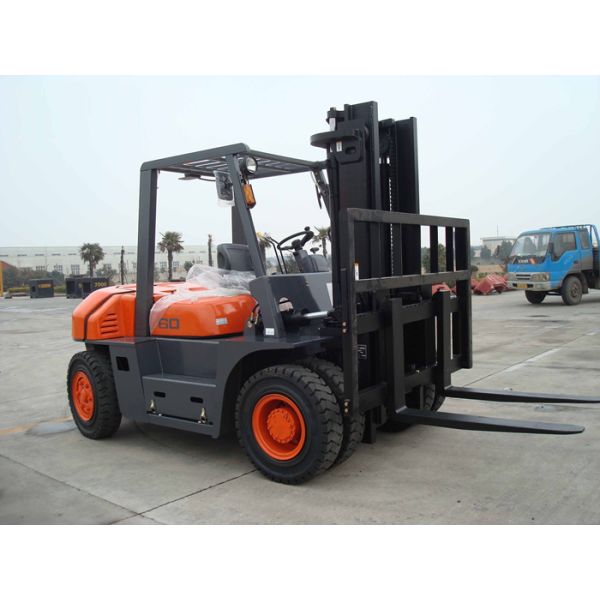

5 ton 6 ton diesel forklift with Euro III engine,ISUZU engine
6 ton forklift Feature
1. high strength-solder bath mast. Wide filed of the front vision ensures the safety of the operation and improves work efficiency.
2. the seat with the ergonomic design, will take a good fit for the operator
3. Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Isuzu, Mitsubishi and Cummins engines are optional.
4. Optimal gearshift pattern is selectable. Trucks with an automatic transmission come with a three-mode selection switch. You can select the automatic transmission gearshift pattern according to your working conditions with the flick of the switch.
The specification of 6 ton diesel forklift
| FD60T Technology Specification | |||||
| Features | 1 | Manufacturer | LTMG | ||
| 2 | Model | FD60T | |||
| 3 | Load capacity | kg | 6000 | ||
| 4 | Load center | mm | 600 | ||
| 5 | Power unit | Diesel | |||
| 6 | Operator type | Driver/seat | |||
| 7 | Tire type | Front/rear | Pnenumatic | ||
| 8 | Wheel | Front/rear | 4/2 | ||
| Dimension | 9 | Max. lifting height | mm | 3000 | |
| 10 | Free lift | mm | 205 | ||
| 11 | Fork size | L*W*T | mm | 1220*150*60 | |
| 12 | Tilt range | Mast forward/backward | deg | 6/12 | |
| 13 | Overall length(without fork) | mm | 3550 | ||
| 14 | Total width | mm | 1995 | ||
| 15 | Mast height (fork lowering) | mm | 2500 | ||
| 16 | Overall height fork raised | With backrest | mm | 4420 | |
| 17 | Height to head guard | mm | 2450 | ||
| 18 | Turning raduis(outside) | mm | 3250 | ||
| 19 | Front face of fork to front axle | mm | 615 | ||
| 20 | Min. right angle stacking aisle | pallet size :1100×1100 add clearence | mm | 5500 | |
| Performance | 21 | Speed | Max Travelling full/no load | km/h | 26/30 |
| 22 | Lifting full/no load | mm/s | 500/550 | ||
| 23 | Lowering full/no load | mm/s | 450/500 | ||
| 24 | Max.drawbar pull | full/no load | kg | 5500/2250 | |
| 25 | Gradeability at 1.6km/h | full load | % | 37 | |
| 26 | Max. Gradeability | full/no load | % | 38/19 | |
| Weight | 27 | Truck weight | kg | 8050 | |
| 28 | Weight distribution | Full load front/rear | kg | 11710/1340 | |
| 29 | No load front/rear | kg | 4020/4030 | ||
| Frame | 30 | Tires | Number | front/rear | 4/2 |
| 31 | Model | front axle | 8.25x15-14PR | ||
| 32 | rear axle | 8.25x15-14PR | |||
| 33 | Wheelbase | mm | 2250 | ||
| 34 | Tread | Front/rear | mm | 1470/1700 | |
| Ground clearence | At lowest point(mast) | mm | 190 | ||
| 35 | Frame | mm | 230 | ||
| Brake | Service brake | power brake | |||
| 36 | Parking brake | Mechanical-hand lever | |||
| Engine | 37 | Battery | Voltage/capacity | V/AH | 2x12V-80AH |
| 38 | Engine | Model | ISUZU 6BG1 | ||
| Rated power | PS | 112/2000 | |||
| Rated torque | kg-m | 42.5/1500 | |||
| Number of cylinders | 6 | ||||
| Placement | L | 6.494 | |||
| 39 | Fuel tank capacity | L | 140 | ||
| 40 | Transmission | shift stage(front/rear-type) | 2-2 power shift T/M | ||
| 41 | Operating pressure | Hydraulic system pressure | kg/cm² | 200 | |

|
