Precise Impact Testing Machine , Microcomputer Tensile Strength Machine SH-17

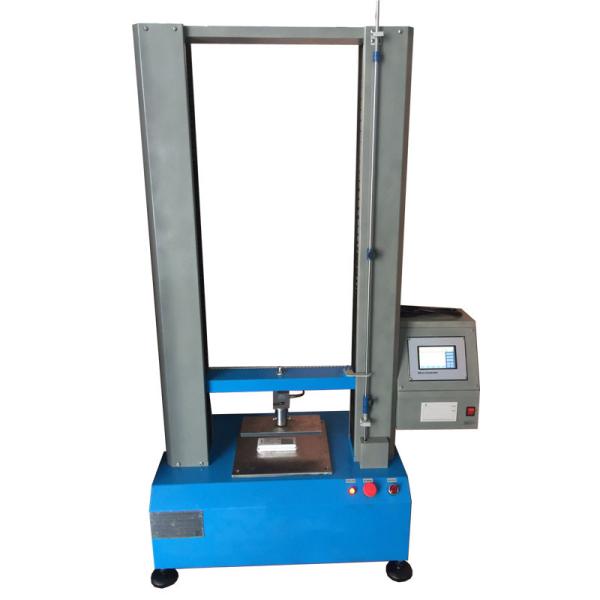

Microcomputer Tensile Test Machine SH-17

Parameters:

• Capacity: 500KG
• Control panel: can display and print peak value and fracture value etc.
• Displacement: 800mm
• Force gear can be converted: Ibf, N, Kgf
• Down mode: by adjusting the height of the measurement, limit down. And save the peak test value
• Test speed: 10, 20, 50mm/min
• Test space: 300mm
• transmission mode: precision ball screw drive
• protection device: leakage protection, overload automatic shutdown protection, travel limit protection

Standard: GB/T16491-1996 Electronic universal testing machines

Application: This device is suitable for test material tensile, tear, peel, compression, bending, shear, three point bending resistance and other properties

Test sample: Doors, printing, plastic, metal, metal, rubber, plastic, shoes, wire, cable, and other types of materials

Feature:

1. Using double precision ball screw vertical structure, the overall of floor design

2. Transmission system using Taiwan AC inverter motor and streamline the utility of the transmission

3. Test speed is closed loop control, the regulation is convenient, the speed is stable

4. Measurement and control system using a single chip microcomputer as the central processing unit of digital circuit technology.

5. Test data display on control panel, can be printed by the printer, the whole structure is simple, functional, easy to operate and maintain.

Our Service

7X24-hour Telephone Consulting Service is available.

Reply and solution will be provided in 8 hours upon customer’s service request.

After-sales Support is available on a 7X24-hour basis, leaving no worries for customers.

Quality inspection from raw material to production, and delivery.

Professional quality control person, to avoid the unqualified products flowing to customer.

Strict inspection to Raw material, production, and delivery.

Full series of equipment in quality laboratory.

Production Line

With years of development, we have established perfect sales network and integrated after-sale service system at domestic and abroad, which enables the company to provide timely, accurate and efficient services, and won good customer reputations. The products are sold all over in China and exported to more than 30 countries and regions such as Europe, America, Southeast Asia, South America, Middle East and Africa. The production, sales volume and scale are all ranked first in the same industry.

Shanghai kerang technology co., ltd is located in Shanghai City, China, and was established in 2018.It is a company specializing in the field of automation technology: technology development, technology transfer, technical consultation and technical service; installation, design, commissioning and maintenance of automation equipment; and other high-tech enterprises. And have strong R & D capabilities in the field of test instrument industry. The testing equipment developed by the company is widely used in many industries such as electronics, home appliances, etc.

We have strong technical reserves and solid technical strength, especially in the field of environmental testing equipment or product online monitoring. The newly developed products are used in aerospace, aerospace, nuclear industry and other projects.

Looking forward to your inquiry and negotiation.
