Wifi 2.4GHz 5GHz EPON ONU 4 Ethernet 2 POTS Interface With CATV

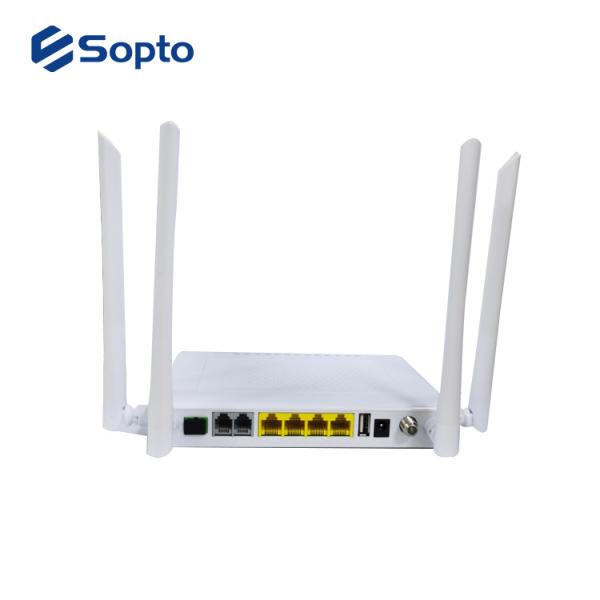

Wifi 2.4GHz 5GHz EPON ONU 4 Ethernet 2 POTS Interface With CATV

Wifi 2.4GHz 5GHz EPON ONU 4 Ethernet 2 POTS Interface With CATV
Wifi 2.4GHz 5GHz EPON ONU 4 Ethernet 2 POTS Interface With CATV
Categories GPON Equipment
Brand Name: Sopto
Model Number: SPU-GE4220AWD-H
Certification: CE RoHS FCC
Place of Origin: Shenzhen China
MOQ: 200pcs
Payment Terms: L/C, T/T,Paypal, D/P
Supply Ability: 10000 pcs per month
Delivery Time: 5-8 days
Packaging Details: 1Pair in standard carton, mass order with carton box package can do OEM according to customer's request.
Product name: G/EPON ONU
Typical Solution: FTTH, FTTO
Power Interface: 12V DC Power supply
Brand: Sopto，OEM
RAM: 2G
Date rate: 10/100/1000M,
Port: 4*10/100/1000M Ethernet interface, 2 POTS interface，with CATV support
Wifi: 2.4GHz and 5GHz WIFI 802.11ac ，with AGC
Dimension: 240mm(L) x 240mm(W) x 24mm (H)
Weight: about 335g
Contact Now
Company Info.
Shenzhen Sopto Technology Co., Ltd
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Wifi 2.4GHz 5GHz EPON ONU 4 Ethernet 2 POTS Interface With CATV

Wifi 2.4GHz 5GHz EPON ONU 4 Ethernet 2 POTS Interface With CATV


Description


SPU-GE4220AWD-H is an indoor fiber broadband access terminal. The device provides one GPON / EPON adaptive optical port and supports XPON mode. It can be used in connection with our company GPON OLT or EPON OLT. It can also interconnect with the mainstream manufacture (Huawei / ZTE / Fiberhome) GPON or EPON OLT to provide users with Internet, VOIP and CATV services based on GPON and EPON technology. The device performance and functions also meet IEEE802.3ah and ITU-T G984.X technical specifications.


SPU-GE4220AWD-H integrates wireless function which meets 802.11 a/b/g/n/ac technical standards. it supports 2.4GHz/5GHz dual-band wireless signal. The 2.4GHz transmission rate up to 300Mbps and the 5GHz transmission rate up to 867Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.


With support for IPv6 / IPv4 Dual Stack function, the SPU-GE4220AWD-H helps operators and end users to achieve IPv6-based network with smooth evolution. This will create more business space for operators and bring future-oriented digital life to users.

Features

  • Single-fiber access, provides internet, voice,CATV, WIFI multiple service
  • In compliant with ITU - T G. 984 and IEEE802.3ah standard
  • Support ONU auto-discovery/Link detection/remote upgrade of software
  • Meet 802.11 a/b/g/n/ac WIFI technical standard
  • Support VLAN transparent, tag configuration
  • Support multicast function
  • Support DHCP/Static/PPPOE internet mode
  • Support port-binding
  • Support OAM/OMCI+TR069 remote management
  • Support data encryption and decryption function
  • Support Dynamic Bandwidth Allocation (DBA)
  • Support MAC filter and URL access control
  • Support H.248 and SIP protocol
  • Support remote CATV port management
  • Support power-off alarm function ,easy for link problem detection
  • Specialized design for system breakdown prevention to maintain stable system
  • EMS network management based on SNMP ,convenient for maintenance

IndicatorDescription
1PWRPower statusOn: The ONU is power on; Off: The ONU is Power off;
2LOSXPON optical signalsOn: Optical power lower than receiver sensitivity ; Off: Optical in normal

3

PON

ONU Register

On: Success to register to OLT;

Blinking: In process of registering to OLT;

Off: In process of registering to OLT;

4


TEL1-2


Telephone port status

On:The connection between the TEL port and the

voice server has been set up

Blinking:The voice service of the TEL port is

established;

Off:The connection between the TEL port and the

voice server is not set up.

5

LAN1-4

LAN port status

On: Ethernet connection is normal;

Blinking: Data is being transmitted through the

Ethernet port;

Off: Ethernet connection is not set up;

6WIFIWIFI

Blinking:Data is being transmitted

On:WIFI function Opens

7CATVCATV status

On:CATV optical normal

Off:The CATV signals are not received


Specification

Item


Parameter


Interface


EPON/GPON Interface

SC/APC single mode single fiber GPON:FSAN G.984.2 standard, Class B+ EPON:1000BASE-PX20+ symmetric GPON:2.488Gbps/1.244Gbps downstream/upstream EPON:1.25Gbps downstream/upstream

Wavelength: Transmit: 1310nm Receiver: 1490nm Receiving sensitivity : GPON:-28dBm EPON:-27dBm Saturated power : GPON:-8dBm EPON:-3dBm Transmitting power : GPON:0.5～5dBm EPON:0～4dBm


CATV Interface

1 RF output

F-Type Connector


POTS Port

2*RJ11

Max 1km distance

Balanced Ring, 50V RMS


Ethernet Interface

4*10/100/1000M auto-negotiation

Full/half duplex mode

RJ45 connector

Auto MDI/MDI-X

100m distance


USB Interface

1*USB 2.0 interface

Transmission Rate: 480Mbps

Power Interface12V DC Power supply

Network


Management

Management ModeOMCI, OAM, TR069, WEB, Telnet

Management

Function

Status monitor, Configuration management, Alarm management, Log management

Physical


Features


Power

External 12VDC/1.5A power supply adapter

Power consumption: <15W

Physical

Specifications

Item Dimension:240mm(L) x 240mm(W) x 24mm (H)

Item Net Weight:about 335g

Environmental

Specifications

Operating temperature: 0 to 40ºC

Operating humidity: 10% to 90%(Non-condensing)

WIFI Specification

  • Comply with IEEE 802.11a/b/g/n/ac protocol standard, support 2.4GHz and 5GHz
  • There are four external antennas
  • 5dBi antenna gain
  • Maximum ideal rate up to 1.2Gbps
  • 2.4GHz supports 2*2 MIMO (Multiple-Input Multiple-Output) technology
  • 5GHz supports 2*2 MIMO (Multiple-Input Multiple-Output) technology
  • Support 8 SSIDs
  • Support wider RF bandwidth, up to 80MHz
  • Support higher 256-QAM modulation mode
  • Support MIMO-OFDM encoding mode
  • Support wireless security of 64/128 bit WEP,802.1x,WPA and WPA2

CATV


ItemParameter
Wavelength1550nm
Optical return loss>45dB
Input optical power-15dBm～+2dBm
RF frequency47MHz~1000MHz
RF output lever≥65dBuV (@-12dBm@85MHz)

Flatness

<±1.5db
CNR≥42dB (@-10dBm@DS22 Channel)
CSO≤-60dBc (@-10dBm@DS22 Channel)
CTB≤-65dBc (@-10dBm@DS22 Channel)
RF output return loss>10dB
RF impedance75Ω

Network application

Typical Solution:FTTH

Typical Business:INTERNET, IPTV, VOD, WIFI



Ordering Information


Part NumberProduct Description
SPU-GE4220AWD-HG/EPON ONU 4*10/100/1000M Ethernet interface, 2 POTS interface,with CATV support 2.4GHz and 5GHz WIFI 802.11ac ,with AGC

Note:
1, Default operating case temperature is 0 ~ 70℃. If you need -40 ~85℃ products, add “T” after Part Number .

2, If you need more customized services, please contact us.
