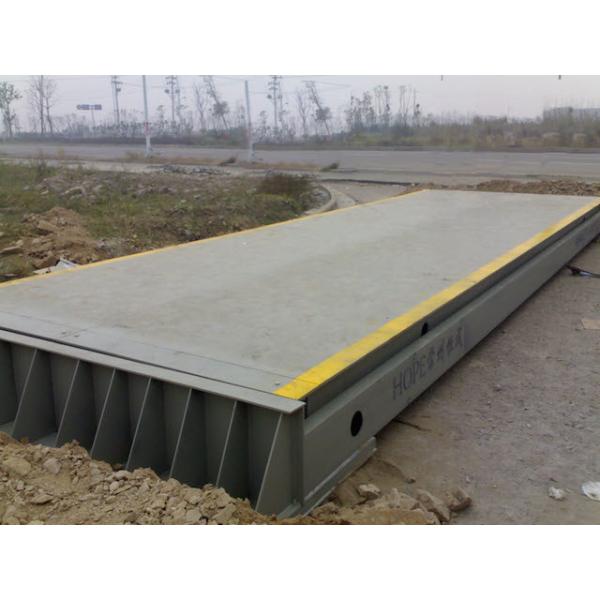

Multi Deck Road Weighbridge Weighing Caravan On Weighbridge Truck Weight Machine

Model 7575 Road Weighbridge is a extremely durable scale for weighing vehicles' max axle load exceed 30 ton or 40 ton. Our new generation heavy duty weighbridge adopt the proven designed bridge I-type welded ribs help direct the pressure of a heavy concentrated load away from areas, securing the truck scales no deformation and stronger enough in the long terms. ZEMIC compression load cells transmit a powerful signal for accurate, reliable weighing.

Specification of Multi Deck Weighbridge:

Features and Advantages of the Road Weighbridge Avery Tronix Weighbridge :

1. The modular design of these products allow for customization to suit your exact needs.
2. Every new weighbridge design undergoes rigorous lifecycle testing.
3. The proven design of the bridge-type U-type welded ribs help direct the pressure of a heavy load away from areas.
4. Divide into several panels, easy to move platforms, and container transportation.
5. Easy installation, calibration, and maintenance.
6. Automatic professional welding along the seam of each rib to the deck ensures lasting strength.
7. High-performance load cells, good accuracy, and reliability make clients maximum income.
8. Full steel stronger structure designed for concentrated loads and frequent use.
9. Many storage functions: Vehicle number, Tare storage, Accumulation storage and many data report output.

Our High Accuracy compression type loadcells :

1. Nickel plated alloy steel IP68 dual shear beam load cell
2. High accuracy OIML R60 C3
3. Capacity:10-50t
4. Current calibrated

Digital Indicator DS10 with LCD backlight:

1. AC/DC power supply.
2. User-defined printing content and format:
3. User-defined printing format, and be able to connect with serial printing interface and thermal printer
4. Reliable shield and anti-jamming:
5. Adopts hardware for shielding and reduces external-jamming and damage of interface.

Truck Weighbridge Manufacturing Process

1. Bending Machine to Shape the Under Beams	2. CNC Cutting machine to satisfy the customized requests	3. Arching Machine
4. Automatic Welding Machine	5.Ball Blasting Machine	6. Make the surface more neatly
7. Baking paint Room	8. Installation and pre-calibration before shipping	9. Shipping Container by Sea or Railway

Truck Weight Scale Civil Work Foundation Types:

1. Pitless Foundation:		Least Expensive Piers support each load bearing point Wash-out slabs sometimes included
2. Shallow Foundation:		Additional beams of concrete run the length and width of the scale Stronger than pier style foundation
3. Pit Style Foundation:		Depth of pit varies per project and is often a custom solution Must allow minimum depth for technician to access components beneath the weighbridge Can require additional care for cleaning as pit can collect debris

SMARTWEIGH INSTRUMENT CO.,LTD , established over 15 years, which is one of the largest manufacturers and exporter in China. Our workshop occupy 20,000 square meters and located in a very convenient and beautiful city, Changzhou, it is close to Shanghai and only take one hour by high speed railway.

  Our company have advanced production equipments like Bending machine, pre-arch machine, shearing machine, qutomatic welder, automatic welding robot, plasama cutting machine, and baking paiting room, to help us increase the product quality and  production productivity  Our company also have the senior technician team and design team. Many products have been applied  patents.

  Under the advanced test equipement, technical workers and rich experice, we manufactured high qualified truck cales, platform scales, bench scales, crane scales, highway axle scales, as well as spare parts like indicators and loadcells. We have exported to RUSSIA, KSA, USA, UK, HOLLAND, SPAIN, ITALY etc many different kind of countries, our good quality and timely delivery has attracted over 200 long term distrbutors all over the world.

Our yearly export collection amount keep about 5000,000 to 10000,000 USD, among of this, our project for the foreign railway, highway and government is the majority. By the way, We can supply both ODM and OEM design also.

  Our company havs been awarded ISO 9001, CE, SGS, OIML cetificate for our products, all weighing scales are

pre-calibrated before shipping, We deicated to the spirit of " Quality come first forveve and technology detemines the productivity"since extablished, and we have benifited from it and quietly brilliant for over 15 years.

More and more wonders and brilliant future will be made be by SMARTWEIGH!
