Dual Backup P0.9 HD LED Display Indoor Fine Pitch For Conference Center

Categories HD LED Display
Brand Name: Bakovision
Model Number: P0.9
Certification: CE EMC UL RoHS
Place of Origin: China
MOQ: 1pcs
Price: Negociation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000 sqm per month
Delivery Time: 25-30days
Packaging Details: wooden box/flight case
Pixel Pitch: 0.9mm
Pixel Density: 11,138,489 px/m2
LED Type: SMM0606
LED Configuration: 1R1G1B
Cabinet Material: die-casting
Cabinet Weight: 4.6kg
Viewing Angle(H/V): 140°/140°
Driving Method: 1/60Scan
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Dual Backup P0.9 HD LED Display Indoor Fine Pitch For Conference Center

Dual Backup P0.9 HD LED Display Indoor Fine Pitch For Conference Center


P0.9 Fine Pitch Led Display Specs

 UHD-0.937
Physical Pitch0.937mm
Pixel ConfigurationSMD 0606
Pixel Density11,138,489pixels/m²
Module Dimensions (W × H) (mm)150 × 168.75
Panel Dimensions (mm)600 × 337.5
NO.of Modules Per Panel (W × H)4 × 2
Physical Resolution of Module (W × H)160 × 180
Physical Resolution of Panel (W × H)640 × 360
Panel MaterialDie-casting
Single Cabinet Weight6 kg/panel
Gray Scale16 bit
Colours281 trillion
Contrast Ratio4,000 :1
Average Power Consumption≤300 W/m²
Max Power Consumption≤600 W/m²
Brightness600~800 nits
Refresh Rate>2,880Hz
Horizontal Viewing Angle160°
Vertical Viewing Angle140°
Expected Lifetime≥100,000 Hrs
Operating Temp/Humidity-20°C-50 °C / 10%-90%
Storage Temp/Humidity-40°C-60°C / 10%-85%
IP Rating (Front/Rear)IP 40/ IP 21
Scan Method1/60 Scan

1. High gray scale under low brightness :Adjustable(>800nit) brightness not only meets the brightness requirements of indoor LED display screen, but also maintain the delicate and clear image by 16 bit gray level.Besides,high definition effect comes with uniform luminance and soft color is suitable for indoor. Under full white testing, pure white color is always available.


2. Wide viewing angle:Whether sitting in a spacious or narrow room, the horizontal and vertical viewing angles had reach 140 degrees, which greatly meets the viewing needs of the audience in different directions.The images effect will not change largely in the range.


3. Excellent thermal management:In a enclosed or Semi closed space, heat dissipation are very important, and the unique design allows this product have an excellent thermal management.We also add a mask to the surface, which due to heat dissipation, and focus light, to achieve better viewing effect.


4. Energy-saving:Constant voltage chip driving reduces the power consumption and prompts the stability. The power consumption per square meter is about 220W.


5. Lightweight and seamless:Ultra-lightweight box, it is easier and faster to operate and install, so it can save labor and time costs.


6. we can let our engineer to guide our clients to do installation.

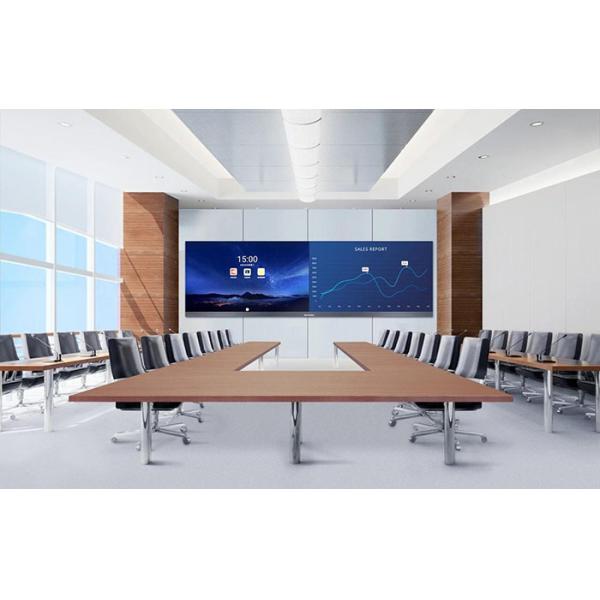

P0.9 indoor fine-pitch led display application
