0.5mm Slot Sus304 Flat Johnson Screens With Round Support Bar

Stainless Steel 304 Johnson Flat Screens With Round Support Bar

Johnson Flat Screens Description:

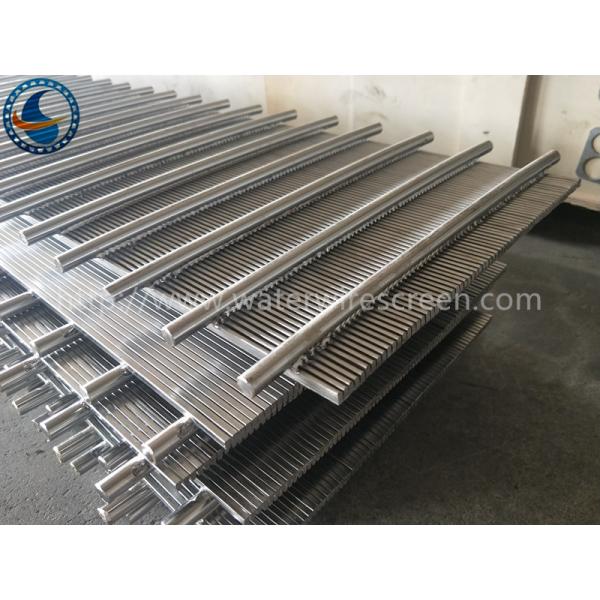

Johnson Flat Screens are welded by Vee-shaped wire and round support rod.

There is a fixed value slot between each v wire.

Johnson Flat Screens Specification:

Johnson Flat Screens Regular Specifications:

Material: Stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm

Length up to 3150mm

Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod:ø10mm round bar

Special specification can be made according to your need.

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the XuTuan Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson wire screen,Water well screen,Vee wire screen, Well screen, Wire wrapped screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Mine sieving mesh, Spiral screen tube,Rod based continuous slot screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate, Wedge wire panel, Screen flat,Water filter,Arc screen, Johnson screen nozzle, Water filter etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic ,Water / oil well , Wastewater treatment etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of our company sincerely hopes to build well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
