| Categories | Plastic Pipe End Caps |
|---|---|
| Brand Name: | JINHAIHU |
| Model Number: | Φ200mm |
| Certification: | ISO9001 |
| Place of Origin: | BEIJING, CHINA |
| MOQ: | 1 set |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P, D/A |
| Supply Ability: | 1000 sets per month |
| Delivery Time: | 3~5 work days |
| Packaging Details: | Standard export wooden cases |
| Product name: | Φ200mm Seal joint for the internal pressure resistance test |
| Test specimen: | Plastic pipes like PVC, PE, PPR, ABS, etc |
| Material: | 304# stainless steel |
| Technics: | Casting |
| Shape: | Half round pot |
| Type: | Plug |
| Model: | φ200mm |
| Exterior size: | φ 270*200mm |
| Max.pressure: | 10Mpa |
| Company Info. |
| Beijing Jinshengxin Testing Machine Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

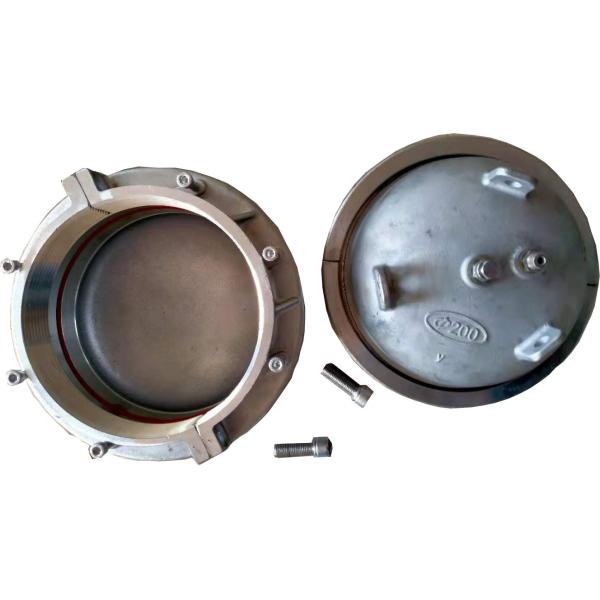

Φ200mm Seal joint for the internal pressure resistance test
Φ200mm Seal joint for the internal pressure resistance test are used for sealing pipe pressure test.
It goes well with our XGY Pipe Hydrostatic Testing Machine as well as your own testing machine.
They are made of 304# stainless steel, good-looking appearance.
Unique structure design, to achieve the first clamp pipe after sealing, clamping sealing success rate of 100%.
| Name | End caps |
| Max. pressure | 10MPa |
| Dimension size | Φ270*200mm |
| Temp. range | 15~95 °C |
| Specimen diameter | Φ200mm |
| Single-end weight | 10kg |
| Structure | Half round pot form,easy fit out , no leakage, convenient operation. |
| Standards | GB/T6111 GB/15560 GB/T8252 ISO1167 |
| Function | Used for sealing pipe in static-press, proof-press,
instantaneous-burst test of plastic pipes like PVC, PE, PPR, ABS,
etc. as well as compound pipes. |
We also have these models:
φ10, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ75, φ90, φ110, φ125, φ140, φ160, φ180, φ200, φ225, φ250, φ280, φ315, φ355, φ400, φ450, φ500, φ560, φ630, φ710, φ800, φ900, φ1000, φ1100, φ1200, φ1500, φ2000mm, 1/2", 3/4", 1", 11/4”, 11/2”, 2”, 21/2”, 3", 4", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24", etc.
Support for custom.
Configuration
1. The bolts 1 set
2. Vent valve 1 piece
3. Connector 1 piece
4. Seal rings 1 set
|
