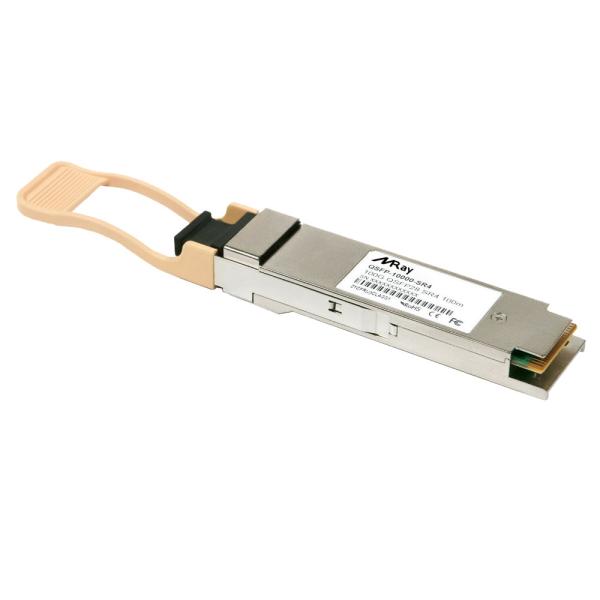

100Gb/s 100m QSFP28+ SR4 Transceivers

Description

Miray 100G QSFP28 SR4 optical transceiver integrates the transmit and receive path onto one module. It converts parallel electrical input signals into parallel optical signals, by a driven Vertical Cavity Surface Emitting Laser (VCSEL) array. The transmitter module accepts electrical input signals compatible with Common Mode Logic (CML) levels. All input data signals are differential and internally terminated. The receiver module converts parallel optical input signals via a photo detector array into parallel electrical output signals. The reCML) levels. All data signals are differential and support a data rates up to 27.9525Gb/s per channel.ceiver module outputs electrical signals are also voltage compatible with Common Mode LogicOn This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.

Features

• Up to 70m transmission on MMF OM3 and 100m transmission on MMF OM4
• 4x25G Electrical Interface
• Single +3.3V power supply
• DDM function implemented
• 2 Wire Serial Interface for module management
• Maximum power dissipation<3.5W
• Operating temperature range: 0℃ ~ 70℃
• Compliant with RoHS6

Recommended Operating Environment

Optical Parameters(T_OP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Production Flow
