| Categories | SDI To Fiber Optic Converter |
|---|---|
| Brand Name: | E-link |
| Model Number: | LNK-M12G-1FV1BV-20 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1pairs |
| Price: | USD999/Paris |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 1000000Pairs/Month |
| Delivery Time: | 3-5 working days |
| Packaging Details: | Standard Carton Packaging |

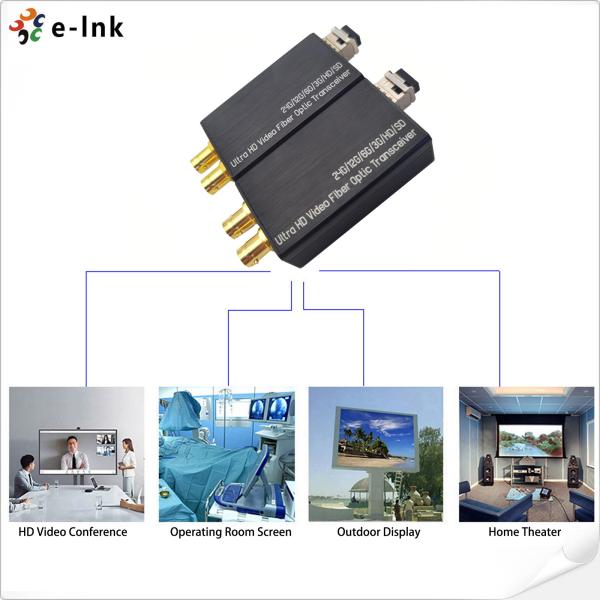

| Product name: | Mini Bidirectional 12G-SDI Fiber Converter |
| Resolution range: | 3840*2160@60Hz |
| Input: | 1 x 12G-SDI on BNC |
| Fiber: | 11.88Gbps SMF 20KM |
| Output cable specification: | ≤70m@12G SDI Belden 1694A |
| Optical transmission bandwidth: | 270MHz~12GHz |
| Power: | 5-15VDC |
| Dimensions (LxWxH): | 80 x 40 x 20 (mm) |
| Operating Temperature: | -40℃~85℃ |
| Warranty: | 2 years |
| Company Info. |
| E-link China Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Mini Bidirectional 12G-SDI Fiber Converter
Technical Indexes
| Formats | Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
| Compatible | Compatible With D VB-AS I and AES10 (MADI) |
| Transmitter | 1 x Forward 12G-SDI on BNC |
| 1 x Backward 12G-SDI on BNC | |
| Receiver | 1 x Forward 12G-SDI on BNC |
| 1 x Backward 12G-SDI on BNC | |
| Fiber | 11.88Gbps SMF 20KM |
| Supported Resolution | HDTV 4K*2K, 1080P, 1080I, 720P |
| Resolution range | 3840*2160@60Hz |
| Input cable specification | ≤70m@12G SDI Belden 1694A |
| Output cable specification | ≤70m@12G SDI Belden 1694A |
| Optical transmission bandwidth | 270MHz~12GHz |
| Power | 5-15 VDC |
| Power Consumption | 2 W (Max.) |
| Dimensions (LxWxH) | 80 x 40 x 20 (mm) |
| Storage Temperature | -40℃~80℃ |
| Operating Temperature | -40℃~85℃ |
|
