2 3 4 Bags/Min Powder Pouch Filling Machine 3P AC380V 50Hz PLC Control

5 To 50kg Packing Weight 2 To 4bags Per Minute Powder Packaging Machine

Product Introduction Of Powder Packaging Machine:

Our BSPM-B100 big powder packaging machine is designed in accordance with national GMP standards, and is mainly developed and designed for ultra-fine powder that is easy to dust and high-precision packaging requirements. According to the signal given by the weight sensor installed under the container, it completes two-speed filling, metering, and lifting. It is suitable for packaging additives, carbon powder, dry fire extinguisher powder, other ultra-fine powders, and powders with high-precision packaging requirements. The main body of the machine is made of 304 stainless steel, and the motor, cylinder, electrical accessories, pneumatic components, etc. are all selected well-known brands, or customers can specify brands.

Technical Data Of Powder Packaging Machine:

Model	BSPM-B100
Packing weight	5-50kg (depending on raw material)
Packaging Accuracy	5-20Kg,≤±0.1-0.2%;
Packaging Accuracy	≥20Kg,≤±0.05-0.1%
Packaging speed	2-4 bags per minute
Power supply	3P AC380V 50Hz
Total power	3.3KW
Total weight	450KG
Material box volume	100L
Boundary dimension	800mm1200mm3200mm
Air source	0.6-0.8Mpa(The air compressor is provided by the customer)

Main Features Of Powder Packaging Machine:

1. A weight sensor is installed under the container tray, fast and slow filling according to the preset weight to ensure high packaging accuracy.

2.Servo motor drives the tray up and down, the lifting speed can be set arbitrarily, and basically no dust is raised to pollute the environment during filling.

3.Servo motor and servo drive control screw, stable performance and high precision.

4.PLC control, touch screen man-machine interface display, easy to operate.

5. All stainless steel structure; combined material box, easy to clean.

6.The filling head is equipped with an adjustable height device, which can easily achieve a variety of specifications for packaging.

7.The fixed screw installation structure will not affect the material properties during filling.

8.Work flow: manual bagging or canning → container raising → fast filling, while the container drops → weight reaches the preset value → slow filling → weight reaches the target value → stop → manually take out the container.

9.Pneumatic bag clamping device and can holding device are available for selection, just choose different devices to meet the requirements of canning and bagging.

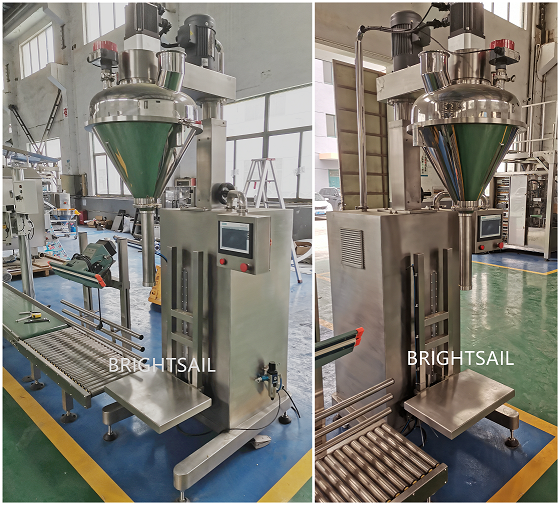

Appearance Of Powder Packaging Machine:

Detailed Image Of Powder Packaging Machine:
