Name: 100v 3a Schottky Barrier Rectifier Diode SR306 SR320 SR3100 SR310
Brand: trusTec
Price: 1 USD

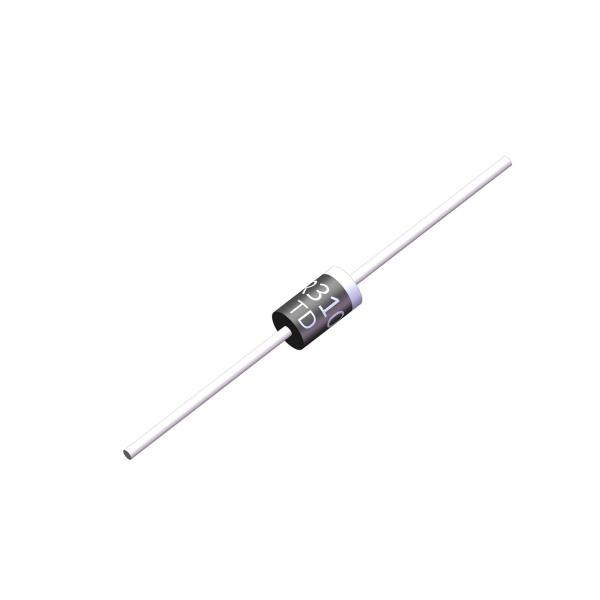

100v 3a Schottky Barrier Rectifier Diode SR306 SR320 SR3100 SR310

Categories	Schottky Barrier Rectifier Diode
Brand Name:	trusTec
Model Number:	SR3100
Certification:	ROHS
Place of Origin:	China
MOQ:	1K PCS
Price:	Negotiable (EXW/FOB/CNF)
Payment Terms:	T/T
Supply Ability:	800KK PCS per month
Delivery Time:	10 work days fresh products
Packaging Details:	1K PCS per tape & box, 10K PCS per carton.
Type:	Schottky Diode
Max. reverse voltage:	100V
Max. forward current:	3A
Max. forward voltage:	0.85V
Max. reverse current:	0.5mA
Package:	DO-27

Contact Now

Add to Cart

Company Info.

Changzhou Trustec Company Limited

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

High Surge Current Schottky Barrier Rectifier Diode 3 Ampere SR320 SR360 SR306 SR3100 SR310

SR320 THRU SR3200

SCHOTTKY BARRIER RECTIFIERS

Reverse Voltage - 20 to 200 Volts Forward Current - 3.0 Ampere

Product Drawing

Schottky Barrier Rectifier Diode SB340 SB360 SB3100 SB3150 SB315 SB3200 0

MAXIMUM RATINGS

	SYMBOLS	SR 320	SR 330	SR 340	SR 350	SR 360	SR 370	SR 380	SR 390	SR 3100	SR 3150	SR 3200	UNITS
Maximum repetitive peak reverse voltage	VRRM	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum RMS voltage	VRMS	14	21	28	35	42	49	56	63	70	105	140	VOLTS
Maximum DC blocking voltage	VDC	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1)	I(AV)	3.0											Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	80.0											Amps
Maximum instantaneous forward voltage at 3.0A	VF	0.55			0.70		0.85					0.95	Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	0.5									0.2		mA
	IR	20.0					10.0				2.0		mA
Typical junction capacitance (NOTE 1)	CJ	250			160								pF
Typical thermal resistance (NOTE 2)	RqJA	40.0											℃/W
Operating junction temperature range	TJ,	-65 to +125					-65 to +150						℃
Storage temperature range	TSTG	-65 to +150											℃

Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Metal silicon junction,majority carrier conduction

Low power loss,high efficiency

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: JEDEC DO-201AD molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.04 ounce, 1.10 grams
