| Categories | CNC Plasma Cutting Machine |
|---|---|
| Brand Name: | Hyzont |
| Model Number: | PCNC-1530 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 sets |
| Price: | USD 500- USD 2000 |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000Sets /month |
| Delivery Time: | 5-8Days |
| Packaging Details: | Wooden case |
| name: | 220V Plasma Cnc Machine |
| model: | PCNC-1530 |
| speed: | 6000 Mm/Min |
| brand: | Hyzont |
| Company Info. |
| Hyzont(Shanghai) Industrial Technologies Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

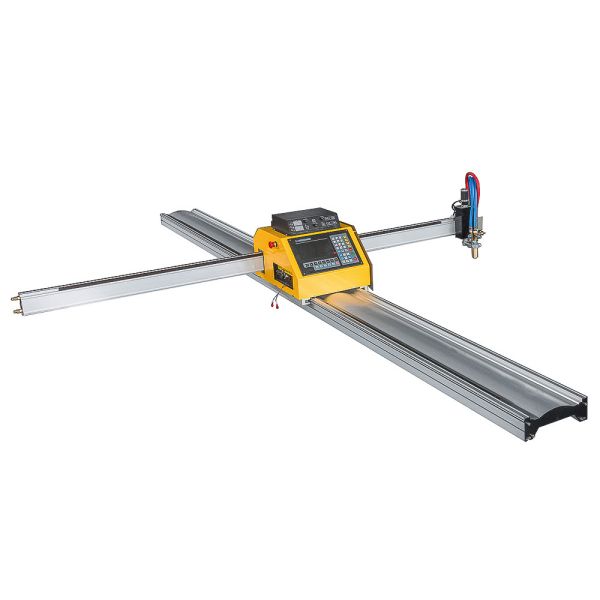

Our cutting machine is a high-end machine numrical controi
plasam,flame cutting machine. Overall structure Adopts imported
high rigidity aluminum alloy materials mouldingl.
Comepared with general portable cutting machine, with higher
handling,stability,larrger transverse cutting area is large,The
longitudinal guide rail rail can be butted to extend,etc.
1)Programmable cutting arbitrary shape parts of line and arc .
2)Dynamic and static graphic display ,easy to learn . Can convert
CAD file in computer ,through USB flash drive transmits to machine
to realize cutting all kinds' graphs and also can program and
operate directly on the machine
3)Track and movement organizations adopt unique design , ensuring
the working precision of machine .
4)Can use flame cutting (gas cutting ) and plasma cutting .
5)Interfaces in English or Chinese can be converted freely .
6)Economical , Portable and easy to operate .
7) Great working stability , Effective shield plasma high frequency
interference
Technical Specification | |
Model | PCNC-1530 |
Effective cutting range(mm) | 1500*3000 |
Cutting speed (mm/min) | 50-6000(plasma cutting max.6000) |
Input power source of Machine body | 220V AC, 50/60HZ, 160W Single phase |
Flame cutting specification (for Oxy-fuel Cutting) | |
Flame Cutting thickness (mm) | 3-200 (Oxygen with acetylene or propane) |
Torch height controller | Flame, electric height adjustment(60mm) |
Flame cutting gas | Oxygen with propane or acetylene |
Plasma torch gas | Compressed air/N2/O2 |
Cutting torch | One piece flame cutting torch, one plasma torch together with the
plasma power source |
CNC controller system | CNC controller system |
Motor | Leadshine Stepper motor and drive |
Plasma Cutting thickness | 0.5-40mm |
Torch height controller | F1620 |
Operation precision | 0.2mm/m |
Guide length *guide width *guide thickness (mm) | 3500*273*60 |
Nesting software | StarCam |
Gas pressure (Mpa) | 0.5 |
Cutting tool Conversion Kit | Oxygen(flame) and plasma spare parts can change easily. |
Host Packaging | |
Size | 550 (L) * 550 (W) * 500(D)mm |
Weight | 50kg |
Packaging Details | cnc portable plasma cutter machine body package The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Track rail packaging | |
Size | 3600 (L) * 300 (W) * 250 (D) |
Weight | 70KG |
Packaging Details | track rail package The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
