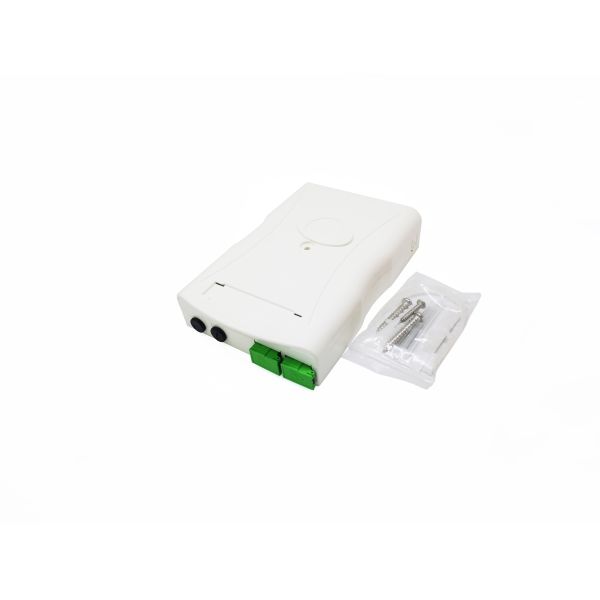

2 Port Plastic FTTH Wall Mount IP30 Optical Termination Box

2 Port Plastic FTTH Wall Mount IP30 Optical Termination Box

Indoor 2 Port Plastic Optical Roseta FTTH Wall Mount Outlet Faceplate White IP30 Terminal Box SC Coupler

The optical rosette acts as a termination point of the optical network, it use direct connectorization or fusion splice in a pre-connectorized pigtail. It can be installed on the wall, and adapt variety of optical connection styles LC/SC, maximum 2 cores.

Features

• It can be installed on any vertical flat surface or on a 4x2 ‘box embedded in wall;
• Compact dimension, light weight, special design
• Easy handling, no special tools needed;
• Identification Label behind the cover;
• The fiber optic reserve is inside the product;
• Allows accommodation of 40mm or 60mm fusion splice protectors;
• Capacity to store 20cm of optical cord with 3mm diameter;
• Complies with what is specified in the recommendations of the IEC 61755-1 standard;
• The lid is closed with a single screw in stainless steel and with a rotate cover to prevent dust.
• Five accesses for input and output of cables or optical cords (patch cords): 2 lower,1 top, 1 side and 1 access in the back cover;

Specification

Application

FTTH internal environment

Product details

2pcs Cable entry at front can allow maximum 5.8mm round feeder cable with rubber seal to make it stable, there is plastic cable clamp inside.

On the right front is SC coupler without flange slots, maxim 2 SC optical adapters.We can use standard SC adapter or adapter with dustproo

The fiber storage and management area is large space, 1.5meter is ok, the structure is special, which ensure fiber at place, not move out.

There is 1 pcs heat sherink sleeve fix slot beside the fiber routing area, can use 40mm,45mm or 60mm sleeves, if need, please click:

http://mao.ecer.com/test/fibreopticbox.com/quality-3989424-1-5mm-steel-eva-heat-shrinkable-tube-protection-sleeve-45mm-40mm-60mm

At front of the box, there is cable entry or adapter output fix location; Fiber optic cable in and out at the same plane, the operation is more convenient and fast, each other does not affect each other, the structure is reasonable and clear;

The box with a screw lock to fix the cover and bottom, the stainless steel expansion screw is firm and reliable. It is covered with a specially customized dust cover, which has good protection, effectively avoids man-made damage.

Standard accessories

04 plastic tapes, 02 fixing screws, 02 screws for closing the cover.

Operation Instructions

Use adapters and connectors, to be acquired separately

Do the splice using the supplied splice protection sleeves with 40 mm long and diameter 3 mm (when contracted), this product must be acquired separately.

Any more questions, please call us at:

We will be back to you at first sight.

Welcome inquir!

There is cable ports at both sides and at back of the box, which ensure flexible fiber distribution and management. when use, please use tools to cut off the block, then can use.
