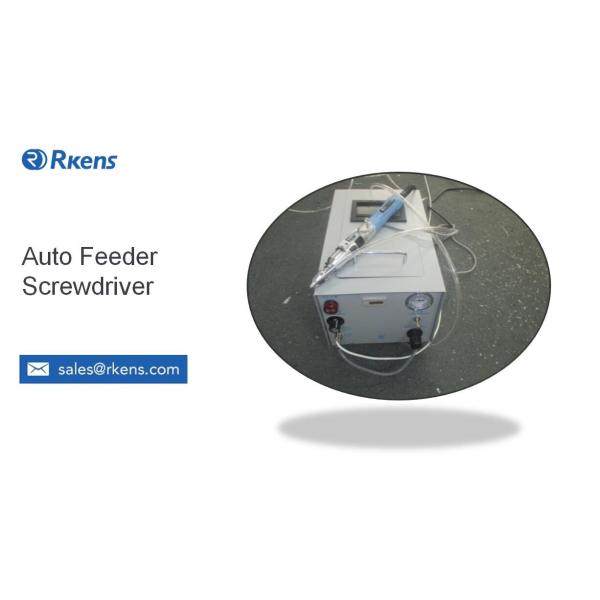

Accurate Automatic Handheld Screwdriver With Auto Screw Feeding System

Intro:

RS-L680 is a handheld screwdriver with auto screw feeding system. It can work for various screws and product.

The automatic locking screw machine is mainly composed of two parts: 1. The feeding system sorts the screws and distributes the screws through the distributor, and the pipe sends the screws to the screwdriver. 2. Use an electric or pneumatic screwdriver to lock the screws into the locking system in the product. Compared with the locking screw action of holding the screw in one hand, holding the electric screwdriver or air screw in the other hand, the automatic lock screw machine can free one hand out, and only need a hand-held screwdriver to align the screw hole to lock the screw. After locking a screw, you only need to lift the screwdriver to align the next screw hole to lock the screw. The machine will automatically transfer a screw to the screwdriver at the moment of lifting the screwdriver, wait for the next screw to be locked, and repeat.

Suitable:

Screwdriver with screw holder and screw automatic feeding system, the screws will be meet below requirements.

1. b>=1.3* D
2. Screws should be M2 to M6. 2mm<=d<=6mm
3. 3.5mm<=D<=11mm (D can be Max20mm. It should be better within 3.5-11mm.

Specification:

Handheld Screwdriver With Feeder For M2 -M6 Screws Feeding And Locking

Features:

1. Convenient, one hand can be freed to support the product to be locked when screwing, and a positioning jig can be saved for small products
2. Fast, because it completely eliminates hand movement, grabbing screws, moving, screw aligning with the screwdriver and other actions, there is no waiting time at all, just align the screw holes and lock the screws.
3. Clean, because the action of removing the screw by hand is omitted, it will not cause secondary pollution to the product due to the stain produced when removing the screw by hand, and the screw will be stained by sweat and make it more rusty.

Working conditions:

1, Screw specification requirements:
The screw length should be over 1.3 times greater than the screw cap’s diameter.

If the screw cap is greater than the screw length, the screw cap may come out first, because the screw will turn over during feeding screws.

The screw length should be less than 45mm.
