| Categories | Optic Fiber Cable |
|---|---|
| Brand Name: | KNOFC |
| Model Number: | GYFTY 96 Core |
| Certification: | ISO9001/CE |
| Place of Origin: | China |
| MOQ: | 1km |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200000M/Week |
| Delivery Time: | 8-10 working days |
| Packaging Details: | Wooden drum |
| Fiber type: | G652D or as your request |
| Fiber brand: | YOFC / Fiberhome / Corning |
| Fiber count: | 2-288 core |
| Strength member: | FRP |
| Protective layer: | Water blocking tape |
| Outer sheath material: | HDPE |
| Application: | Aerial / Duct |
| Life expectancy: | more than 30 years |
| Operating Temperature: | -40°C to+70°C |

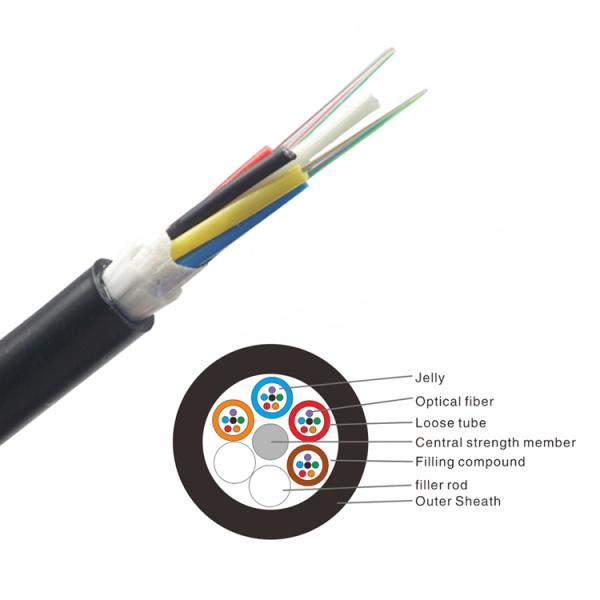

GYFTY Cable Fibre Optic 96 Core Non-metallic Use for Overhead Duct
Description:
Characteristics:
1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of
fiber
4. Crush resistance and flexibility.
5. The following measures are taken to ensure the cable watertight:
a.Single Fiber Reinforced Plastic as the central strength member
b. Loose tube filling compound
c. 100% cable core filling
Application:
1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.
Cable Mechanical characteristic:
| Cable type | Diameter (mm) | Weight (kg/km) | Tensile strength Long/short term (N) | Crush Resistance Long/Short Term(N/100mm) | Bending radius Dynamic/static (mm) | Storage temperature ( ℃ ) |
| GYFTY-2~60 | 9.0 | 85 | 600/1500 | 300/1000 | 20D/10D | -20~+70 |
| GYFTY-62~72 | 10 | 95 | ||||
| GYFTY-74~96 | 11 | 110 | ||||
| GYFTY-98~120 | 13 | 125 | ||||
| GYFTY-122~144 | 15 | 145 |

|
