Soft Magnetic Alloy 1j79 5.5mm Stainless Steel Round Bar

Categories Stainless Steel Round Bar
Brand Name: Mittel
Model Number: 1J79
Certification: ISO,BV,SGS
Place of Origin: China Wuxi
MOQ: 50KGS
Price: 25 USD/KG
Payment Terms: L/C, T/T
Supply Ability: 500000KGS
Delivery Time: 7 Working Days
Packaging Details: Wooden Pallet BOX
Type: Round
Application: Construction
Standard: DIN
Grade: 1J79
Shape: Round
Special use: Cold Heading Steel
Dimensions: 5.5mm-500mm
Technique: Cold drawn&hot rolled
Length: Customers' Requirements,or as required.,5.8m
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Soft Magnetic Alloy 1j79 5.5mm Stainless Steel Round Bar

Similar to the brand
GB/T
AISI/ASTM
1J79
Alloy4
Physical properties of 1J79
The density
8.6 g/cm3
Curie point
450℃
Chemical composition
Brand
%
Ni
Fe
C
Mn
Si
P
S
Cu
1J79
Min
78.5
-
0.6
0.3
Max
80.5
0.03
1.1
0.5
0.020
0.020
0.20
Mechanical properties of alloys at room temperature
Brand
Varieties
magnetic
Initial permeability
μO(mH/m)
Maximum permeability
μm(mH/m)
Coercive force Hc (A/m)
Saturation magnetic induction intensity
Bs(T)
1J79
cold-rolled belt
≥31
≥250
≤1.2
0.75
Forged (rolled)
rod and plate
≥25
≥125
≤2.4
0.75

Features and applications of 1J79

Transformers, transformers, magnetic amplifiers, choke cores and magnetic shielding with high initial permeability and operating in a weak magnetic field.

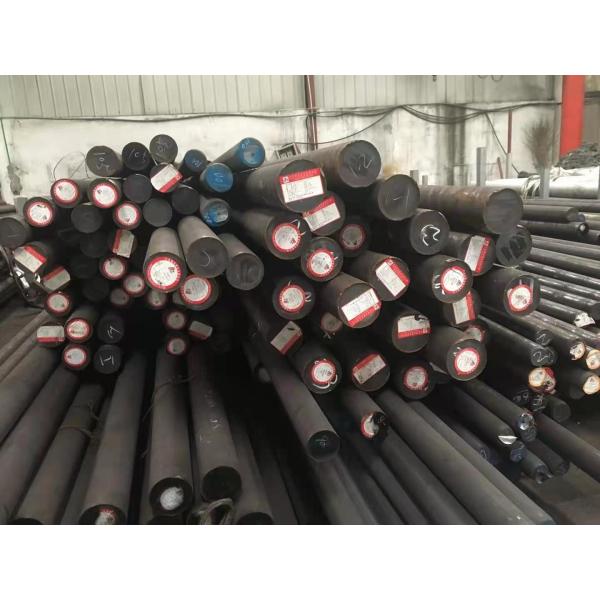

Detailed Images

Quality Soft Magnetic Alloy 1j79 5.5mm Stainless Steel Round Bar for sale
