Plastic Pallet Machine Plastic Pallet Pressing Production Line

Plastic Pallet Machine and Plastic Pallet Pressing Production Line

Introduction of Plastic Pallet Machine and Plastic Pallet Pressing Production Line

Plastic Pallet Machine and Plastic Pallet Pressing Production Line is a plastic product production line mainly designed for recycling waste plastics. At present, the main products of plastic pallet production line are molded plastic pallets. Plastic pallet pressing production line can use most of the waste plastics for plastic recycling. The whole set of plastic pallet equipment and production process are energy-saving and environmentally friendly, with high automation, saving labor. And the equipment cost of all plastic pallet production line is greatly reduced compared with the existing plastic injection molding equipment.

Process of Plastic Pallet Machine and Plastic Pallet Pressing Production Line

The extrusion plasticization system of plastic pallet production line is plasticizing the plastic raw materials. The plasticized raw materials enter the storage system for storage, and then pass the quantitative system to accurately supply the mold raw materials according to the required amount of the product. And then the high-pressure plastic pallet pressing machine press to form plastic pallets. And finally, the plastic pallet is taken out by the taking-out device. The whole process is fully automated, without manual operation, and the product quality is stable!

Features of Plastic Pallet Machine and Plastic Pallet Pressing Production Line

Comparison of compression molding and injection molding

Injection Molding:

The existing injection molding process has high requirements on raw materials, and also has high requirements on the content of raw materials and the fluidity of the raw materials after melting. Therefore, if the injection molding process wants to use recycled plastic as raw materials, the raw materials need to be cleaned, filtered, and even need to re-granulate. The process of cleaning, filtering, and re-granulation will cause a lot of energy consumption. And the wastewater and impurities discharged from cleaning and filtering will cause environmental pollution.

Compression Molding:

The requirements for raw materials and their impurities are very low. The raw materials have a wide range, do not need to be cleaned and filtered, and do not need to be pelletized. The recycled wastes plastic only needs to be simply sorted out of the large particles of metal. After sorting, the scrap metal can be recycled. And other plastics can be directly made into products. So compression molding is reducing a lot of energy consumption, no discharge of wastewater and impurities, energy-saving, and environmental protection.

More details of Plastic Pallet Machine and Plastic Pallet Pressing Production Line

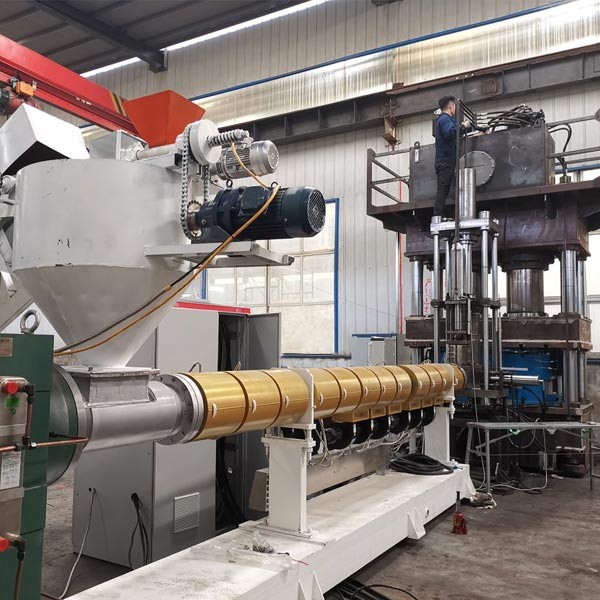

Plastic pallet production line, the complete set of equipment includes the feeding system, plastic extrusion, and plasticization system, storage quantitative system, the molds, hydraulic plastic pallet pressing machine, cooling system, and taking-out device.

Mold: the moulds are made of P20 and 45 steel. P20 steel is used on the surface of the contact pallet, with high hardness, not easy to rust, and uniform hardness. The mold life can reach 300000 mold times.

Type size: customizable

There are upper and lower mold guides on the mold to ensure accurate mold clamping.

P20 steel material is suitable for making plastic molds and die-casting mold materials for low melting point metals. And P20 steel material has good machinability and mirror polishing performance.

Technology Parameters of Plastic Pallet Machine and Plastic Pallet Pressing Production Line:
